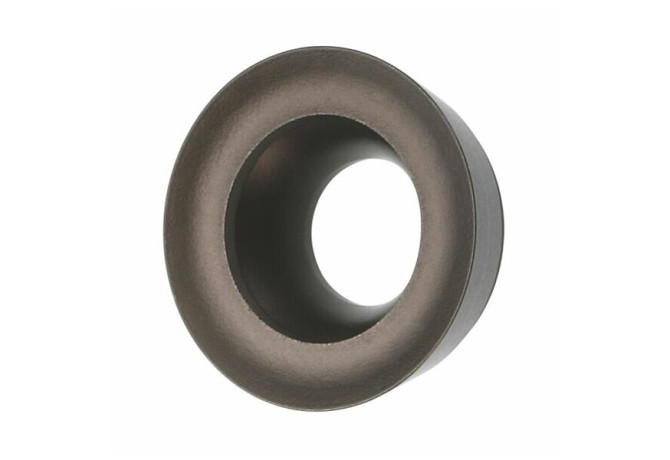

Главная Каталог продукции Toolunited 15 201-10 - Round insert 212254 UNI

212254 UNI

Артикул: 212254 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

RD1003M03N

FamilyProducts

RDHX 1003 MOT

GRDMFG Grade manufacturers designation

HB735

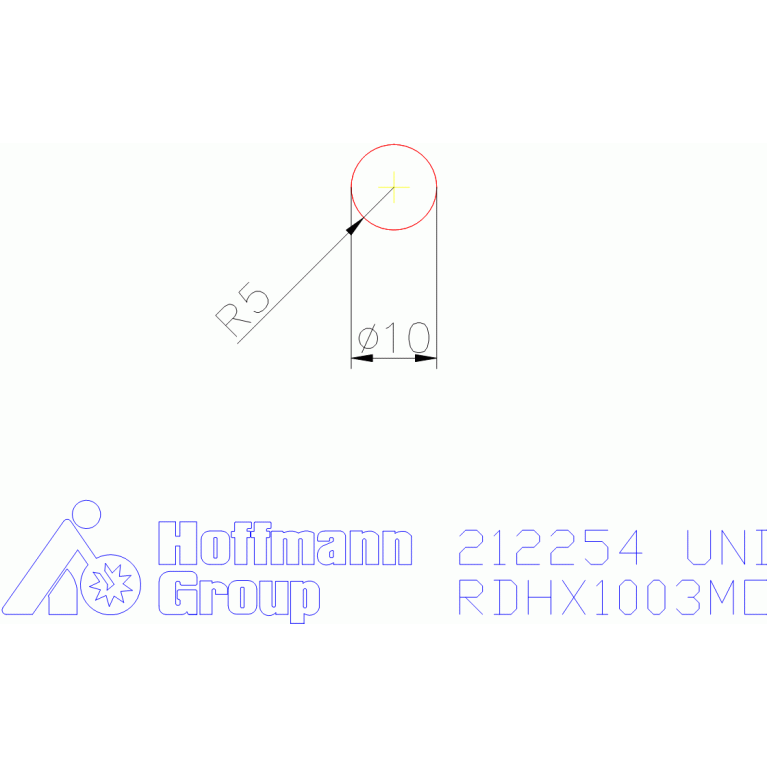

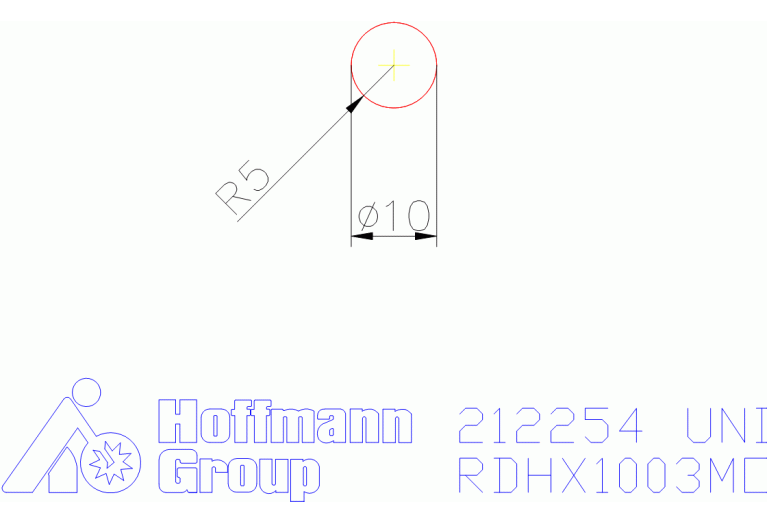

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD1003M03N

M M-dimension

10 mm

Name Identifying order number

212254 UNI

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RDHX1003M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
