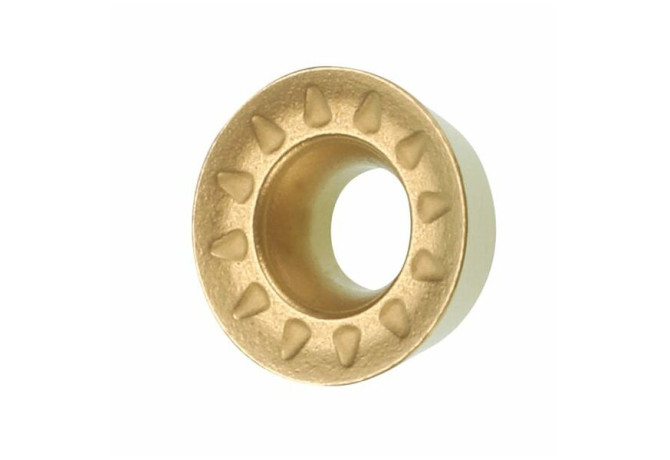

Главная Каталог продукции Toolunited 15 201-10 - Round insert 212222 INOX

212222 INOX

Артикул: 212222 INOX

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

RD0702M03R

FamilyProducts

RDNX 0702 MOEN, positive

GRDMFG Grade manufacturers designation

HB7635

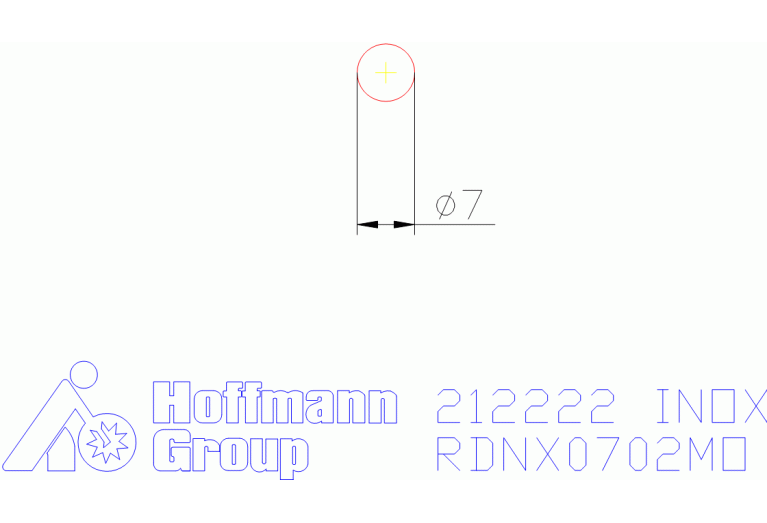

IC Inscribed circle diameter

7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD0702M03R

M M-dimension

7 mm

Name Identifying order number

212222 INOX

S Insert thickness

2.38 mm

STDDES Standard designation

RDNX0702M0

STDDESAnsi Standard designation ANSI

RDNX2.51.5V

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.024 kg
