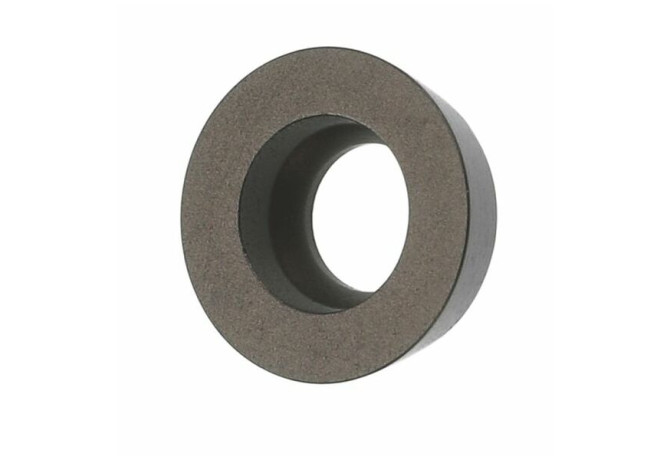

Главная Каталог продукции Toolunited 15 201-10 - Round insert 212184 ST1400

212184 ST1400

Артикул: 212184 ST1400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

RD0501M03N

FamilyProducts

RDHX 0501 MOTN

GRDMFG Grade manufacturers designation

HB7515

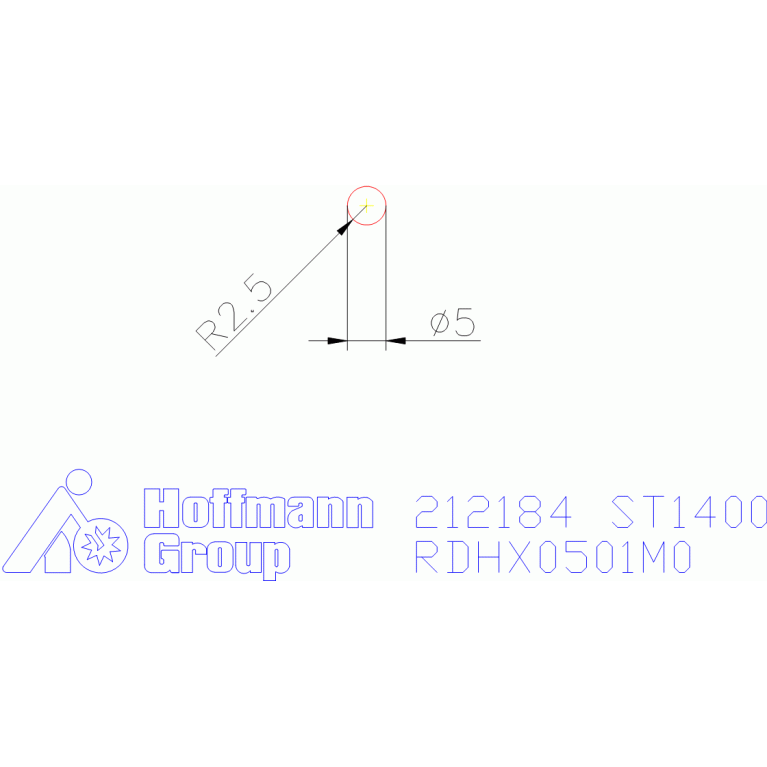

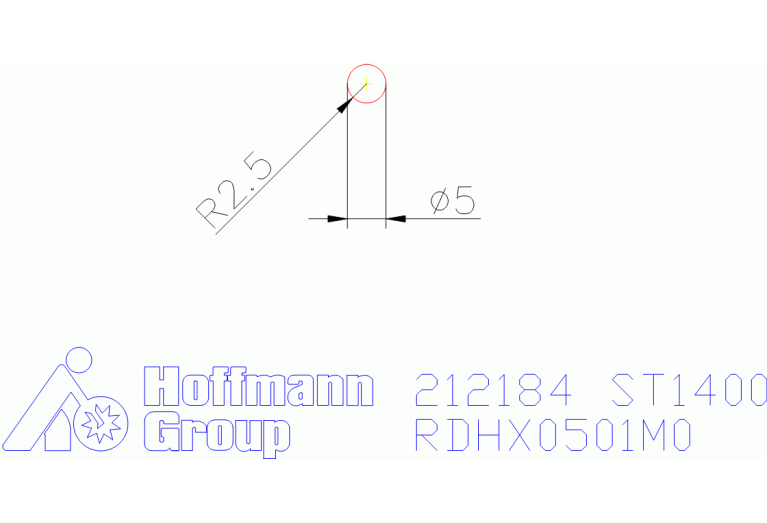

IC Inscribed circle diameter

5 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RD0501M03N

M M-dimension

5 mm

Name Identifying order number

212184 ST1400

S Insert thickness

1.15 mm

S1 Insert thickness total

1.15 mm

STDDES Standard designation

RDHX0501M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0005 kg
