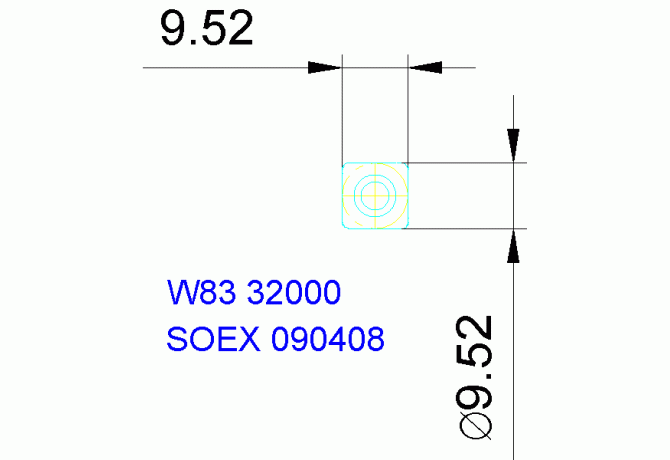

W83 32000.2184

Артикул: 1487567

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CBMD Chip breaker manufacturers designation

BM2

COMPC Company code

KOG - Komet Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

4/24/2012

DIN

66931

EPSR Insert included angle

90 Degree

FamilyProducts

SOEX 090408-BM2 BK84

GRDMFG Grade manufacturers designation

BK84

IC Inscribed circle diameter

9.52 mm

ID Technical product number

1487567

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

66931

Name Identifying order number

W83 32000.2184

RE Corner radius

0.8 mm

S Insert thickness

4.37 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SOEX090408

STDDESAnsi Standard designation ANSI

SOEX332

TCINS Tolerance class insert

Working process

No working processes available
