Главная Каталог продукции Toolunited 15 201-02 - Square insert SPUN 120308FN H10T

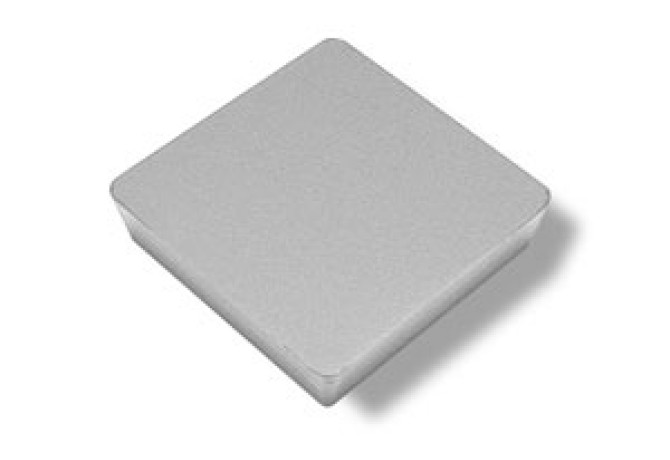

SPUN 120308FN H10T

Артикул: SPUN 120308FN H10T

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

F - Sharpedged

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

DIN

SP1203081N

EPSR Insert included angle

90 Degree

FamilyProducts

turning insert

GRDMFG Grade manufacturers designation

H10T

GRDPRIO Standard designation of the grade main application

HW-K10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1203081N

Name Identifying order number

SPUN 120308FN H10T

RE Corner radius

0.8 mm

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

SPUN120308FN

STDDESAnsi Standard designation ANSI

SPUN422FN

TCINS Tolerance class insert

U - Not treated

Working process

No working processes available
