Главная Каталог продукции Toolunited 15 201-02 - Square insert SPMW120408 R2624

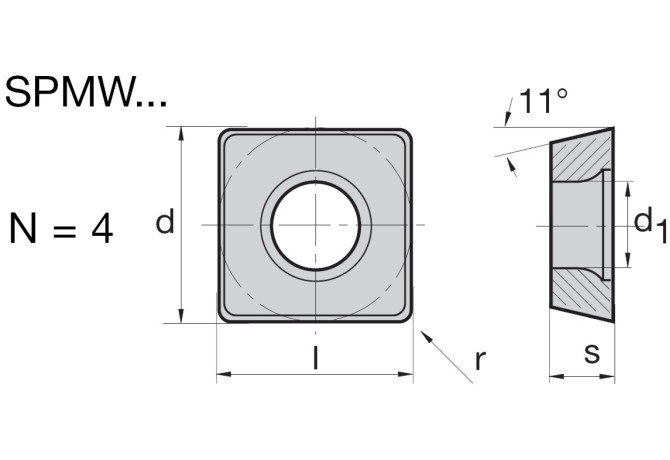

SPMW120408 R2624

Артикул: SPMW120408 R2624

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiAIN

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.2 mm

Delivery state valid from

050

DIN

SP1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

R2624

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SPMW120408 R2624

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204 3N

Materials

P,M,K

Name Identifying order number

SPMW120408 R2624

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPMW120408

STDDESAnsi Standard designation ANSI

SPMW432

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling,FZI - Circular milling
