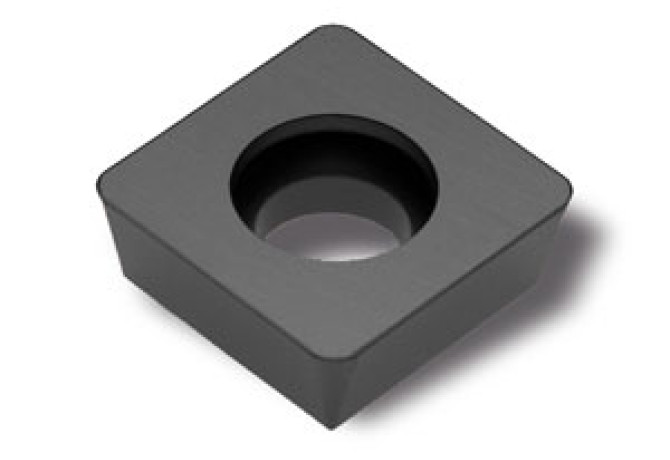

SPKW 1204EDER SR216

Артикул: SPKW 1204EDER SR216

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.85 mm

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

SP1204ED4R

EPSR Insert included angle

90 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

SR216

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

75 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1204ED4R

Name Identifying order number

SPKW 1204EDER SR216

RE Corner radius

0.25 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SPKW1204EDER

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
