Главная Каталог продукции Toolunited 15 201-02 - Square insert SPHX060202R21 KC7215

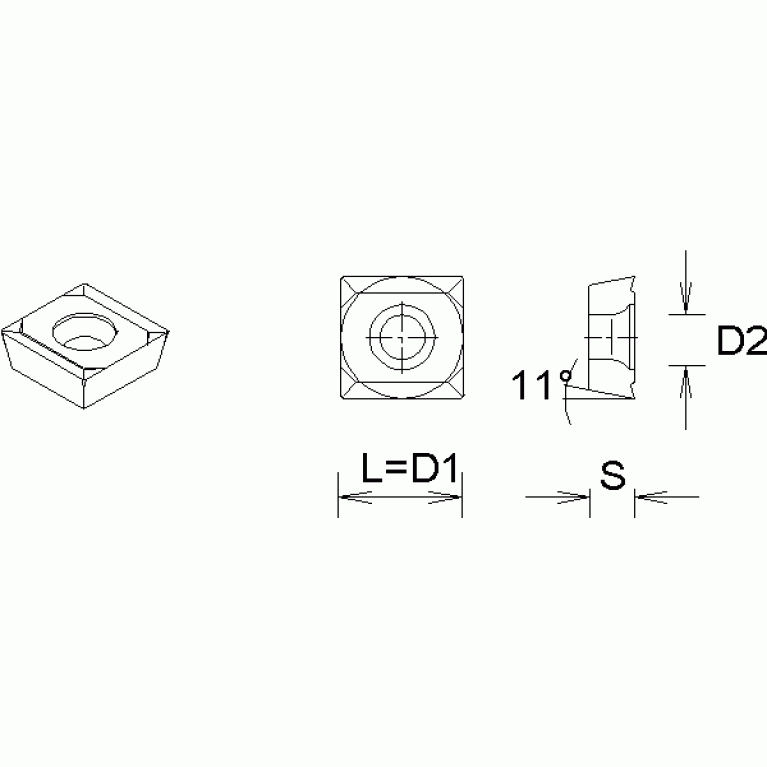

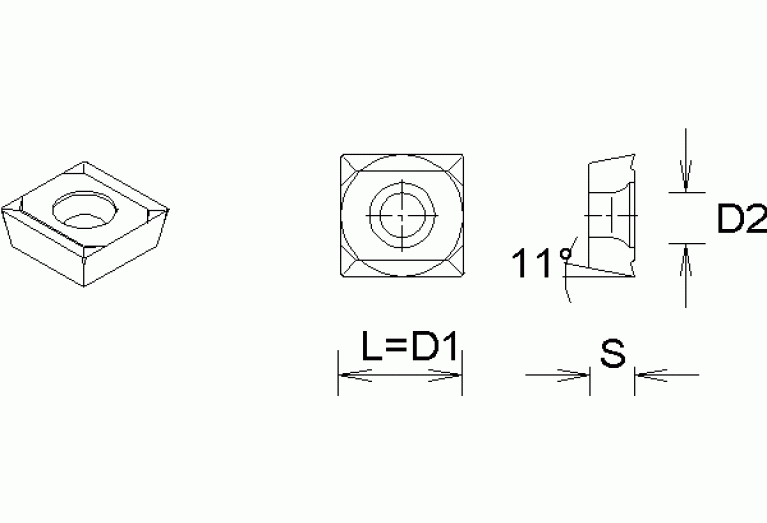

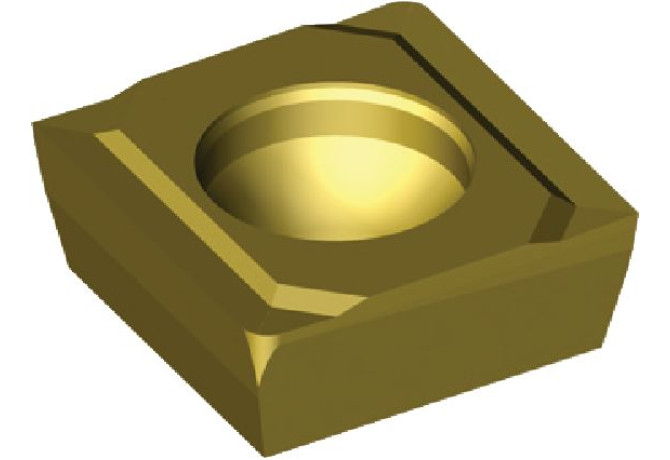

SPHX060202R21 KC7215

Артикул: 2245846

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

4 Degree

CBMD Chip breaker manufacturers designation

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.85 mm

Delivery state valid from

1/4/2011

DIN

SPHX060202

EPSR Insert included angle

90 Degree

FamilyProducts

S2-S-Counterboring-Insert

GRDMFG Grade manufacturers designation

KC7215

IC Inscribed circle diameter

6.35 mm

ID Technical product number

2245846

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.35 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SPHX060202

Name Identifying order number

SPHX060202R21 KC7215

RE Corner radius

0.2 mm

S Insert thickness

2.38 mm

S1 Insert thickness total

2.38 mm

STDDES Standard designation

SPHX060202R

TCINS Tolerance class insert

Working process

No working processes available
