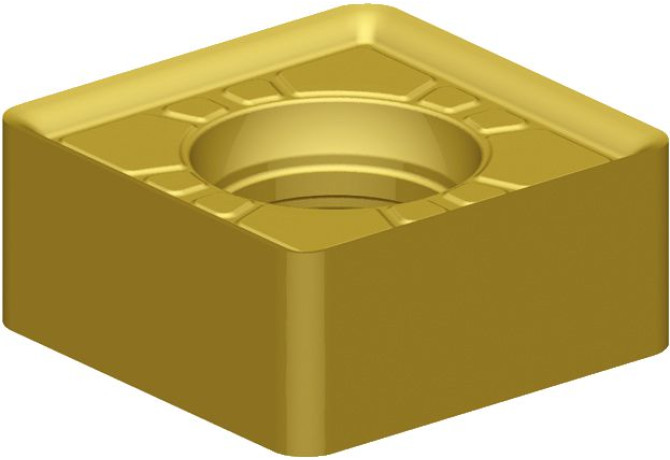

SNPJ120616SNGD KC520M

Артикул: 5630750

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

AS Clearance angle wiper edge

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

ALOX-SN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2016

DIN

SN1206164N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert SNPJ-GD

GRDMFG Grade manufacturers designation

KC520M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

13 mm

ID Technical product number

5630750

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

13 mm

LE Cutting edge effective length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1206164N

Name Identifying order number

SNPJ120616SNGD KC520M

NameAnsi Identifying order number inch alternative

SNPJ444SNGD KC520M

NOI Insert index count

RE Corner radius

1.6 mm

S Insert thickness

4.52 mm

STDDES Standard designation

SNPJ120616SNGD

STDDESAnsi Standard designation ANSI

SNPJ444

TCINS Tolerance class insert

Working process

No working processes available
