Главная Каталог продукции Toolunited 15 201-02 - Square insert SNMP190612 K313

SNMP190612 K313

Артикул: 1161107

В наличии

В корзину

Описание

Характеристики

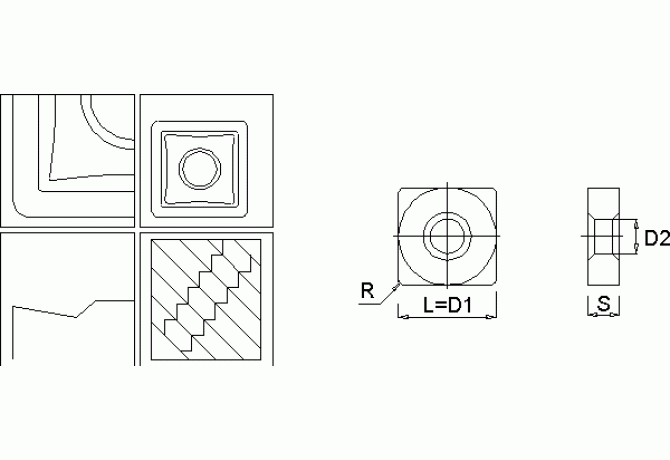

AN Clearance angle major

0 Degree

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.93 mm

Delivery state

LH - Stocked

DIN

KH-WP KL SNMP1906

EPSR Insert included angle

90 Degree

FamilyProducts

Kenloc Insert

GRD2ND Standard designation of the grade 2nd application

HW-S20

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K313

GRDPRIO Standard designation of the grade main application

HW-K15

IC Inscribed circle diameter

19.05 mm

ID Technical product number

1161107

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

90 Degree

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP KL SNMP1906

Name Identifying order number

SNMP190612 K313

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMP190612

STDDESAnsi Standard designation ANSI

SNMP643

TCINS Tolerance class insert

Working process

No working processes available
