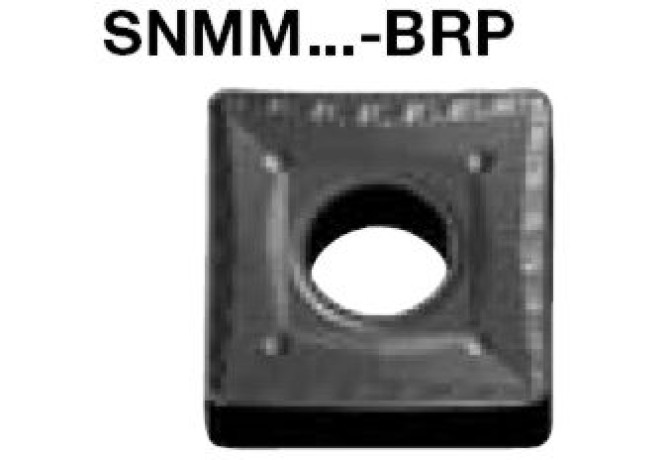

SNMM250924-BRP LC435D

Артикул: SNMM250924-BRP LC435D

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BRP

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

Delivery state valid from

DIN

SN2509 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M35

GRDMFG Grade manufacturers designation

LC435D

GRDPRIO Standard designation of the grade main application

HC-P35

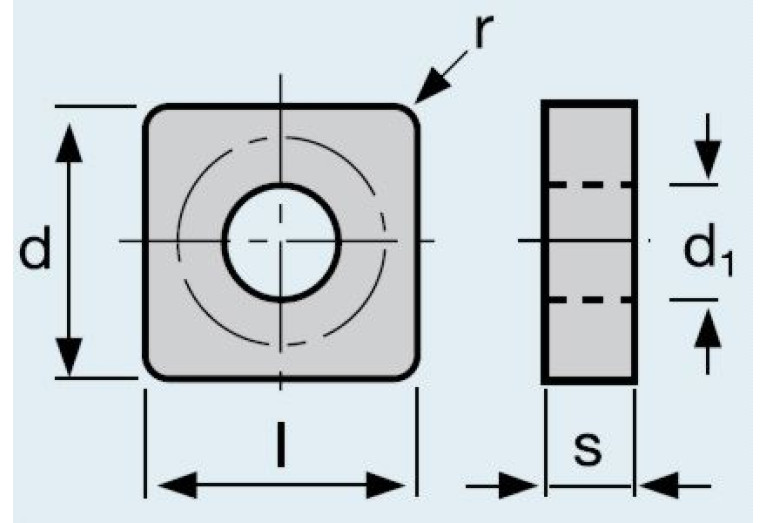

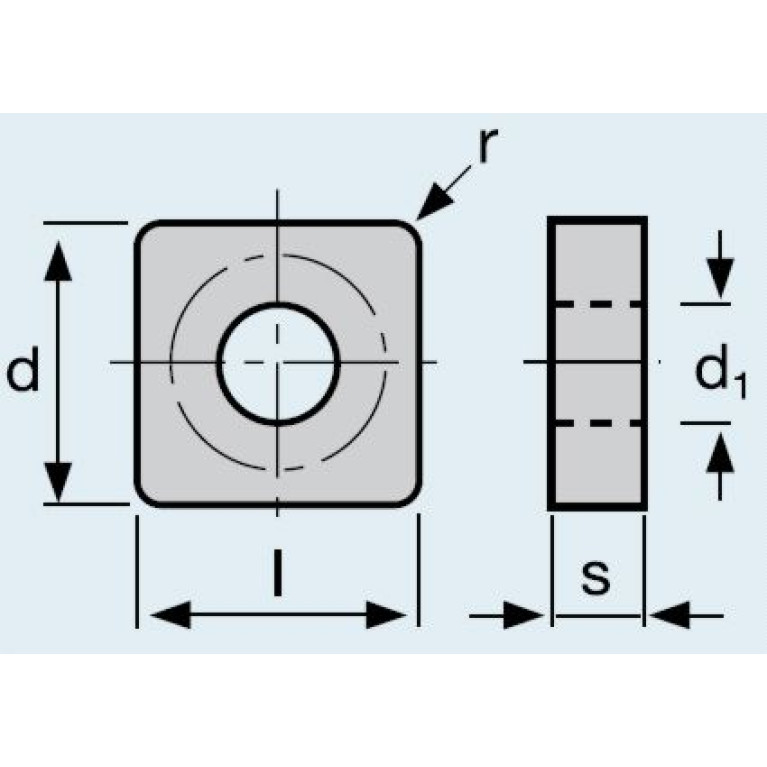

IC Inscribed circle diameter

25.4 mm

ID Technical product number

SNMM250924-BRP LC435D

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2509 2N

Materials

Name Identifying order number

SNMM250924-BRP LC435D

RE Corner radius

2.4 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

SNMM250924

STDDESAnsi Standard designation ANSI

SNMM866

TCINS Tolerance class insert

Working process

DDA - External turning
