Главная Каталог продукции Toolunited 15 201-02 - Square insert SNMM 250724SN-TRR CTC1115

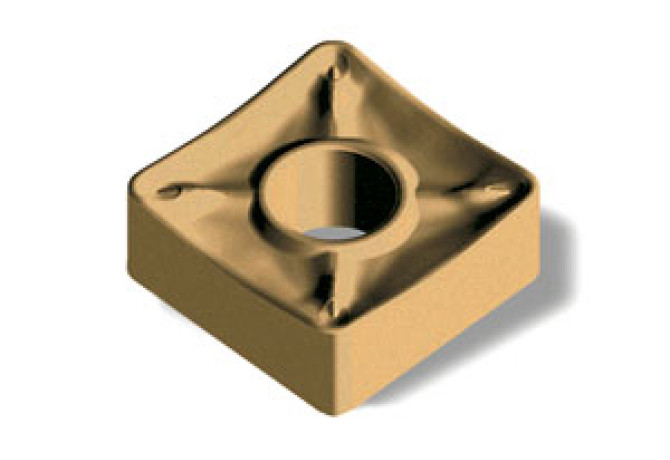

SNMM 250724SN-TRR CTC1115

Артикул: SNMM 250724SN-TRR CTC1115

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

TRR

CECC Cutting edge condition code

E - Rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

9.12 mm

DIN

SN2507242N

EPSR Insert included angle

90 Degree

FamilyProducts

turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M15

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDMFG Grade manufacturers designation

CTC1115

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

25.4 mm

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

25.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2507242N

Materials

P,M,K

Name Identifying order number

SNMM 250724SN-TRR CTC1115

RE Corner radius

2.4 mm

S Insert thickness

7.94 mm

S1 Insert thickness total

7.94 mm

STDDES Standard designation

SNMM250724SN

STDDESAnsi Standard designation ANSI

SNMM856SN

TCINS Tolerance class insert

Working process

No working processes available
