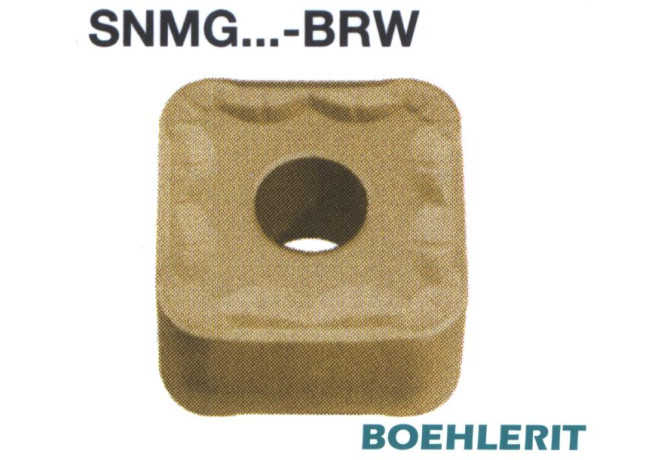

SNMG211040SN-BRW LC240F

Артикул: SNMG211040SN-BRW LC240F

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

BRW

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.8 mm

Delivery state valid from

DIN

SN2110 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Insert

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDMFG Grade manufacturers designation

LC240F

GRDPRIO Standard designation of the grade main application

HC-P40

IC Inscribed circle diameter

21 mm

ID Technical product number

SNMG211040SN-BRW LC240F

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

21 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN2110 2N

Materials

P,M

Name Identifying order number

SNMG211040SN-BRW LC240F

RE Corner radius

4 mm

S Insert thickness

10.46 mm

S1 Insert thickness total

10.46 mm

STDDES Standard designation

SNMG211040SN

TCINS Tolerance class insert

Working process

No working processes available
