Главная Каталог продукции Toolunited 15 201-02 - Square insert SNMA190612 LC215K

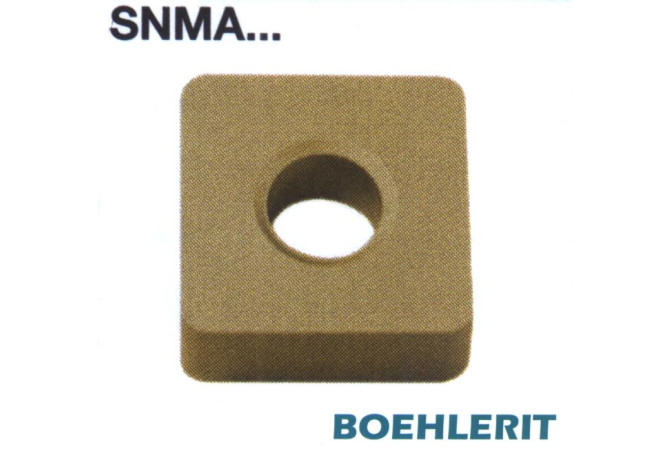

SNMA190612 LC215K

Артикул: 6410815

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

MT-Al2O3

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

7.93 mm

Delivery state valid from

2/1/2009

DIN

SN1906 2N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LC215K

GRDPRIO Standard designation of the grade main application

HC-P15

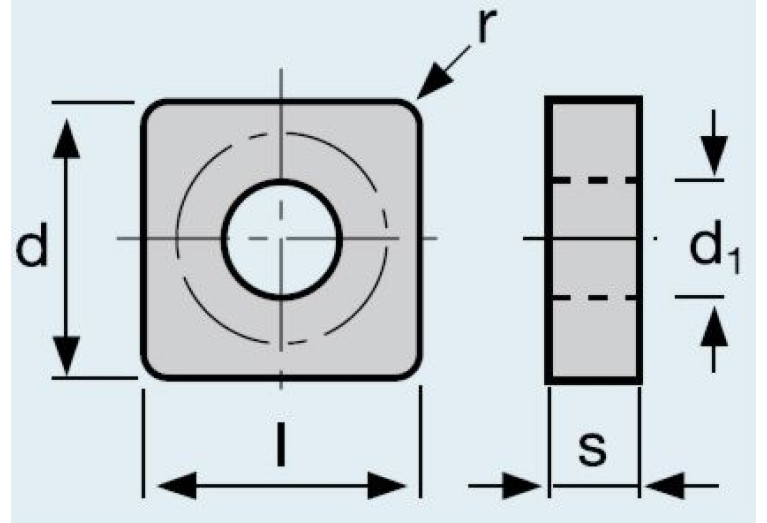

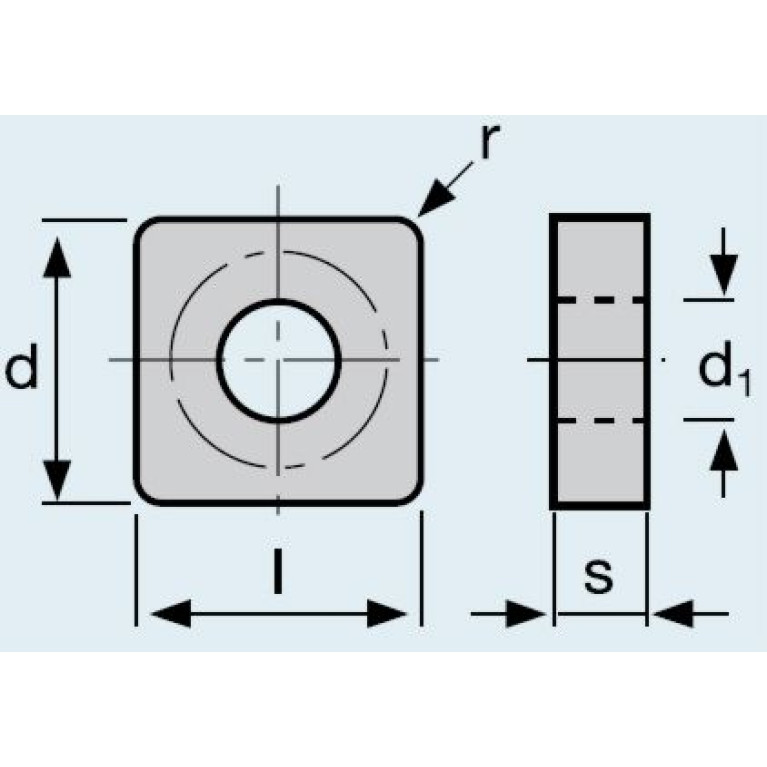

IC Inscribed circle diameter

19.05 mm

ID Technical product number

6410815

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906 2N

Materials

P,M,K

Name Identifying order number

SNMA190612 LC215K

RE Corner radius

1.2 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMA190612

STDDESAnsi Standard designation ANSI

SNMA643

TCINS Tolerance class insert

Working process

DDA - External turning,DDB - External and internal turning
