Главная Каталог продукции Toolunited 15 201-02 - Square insert SNKQ1205AN LC615E

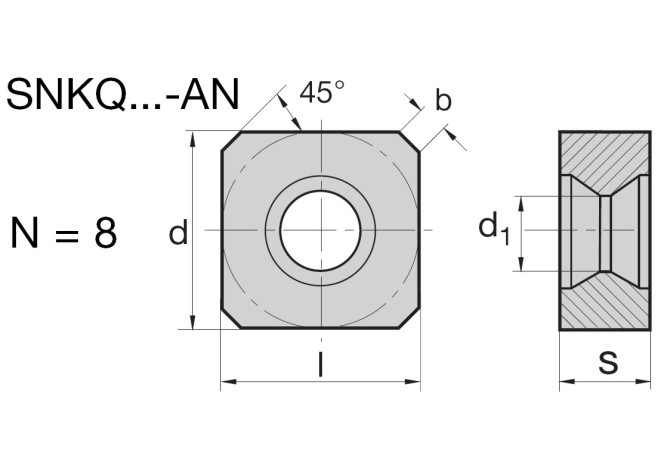

SNKQ1205AN LC615E

Артикул: 6400583

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

MT-CVD

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

2/1/2009

DIN

SN1205AN5N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LC615E

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6400583

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1205AN5N

Materials

Name Identifying order number

SNKQ1205AN LC615E

RE Corner radius

2 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

SNKQ1205AN

TCINS Tolerance class insert

K - Cold formed

Working process

FEC - Square shoulder milling,FPL - Face milling
