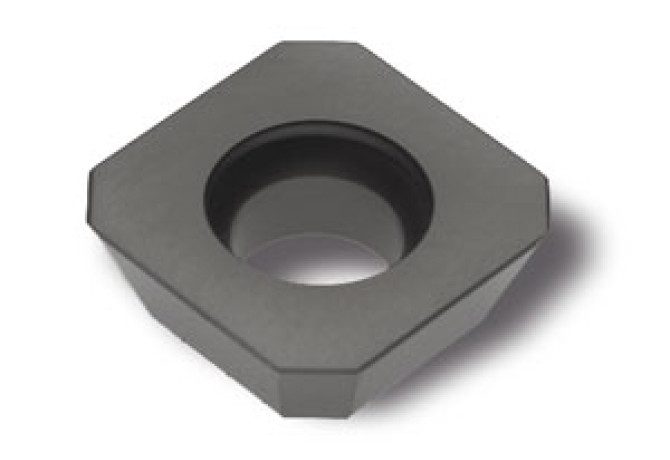

SEKW 1204AFSN SR216

Артикул: SEKW 1204AFSN SR216

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

2.2 mm

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

SE1204AF4N

EPSR Insert included angle

90 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

SR216

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1204AF4N

Name Identifying order number

SEKW 1204AFSN SR216

RE Corner radius

2.4 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEKW1204AFSN

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
