Главная Каталог продукции Toolunited 15 201-02 - Square insert SDMW 1905AD-R145 R421

SDMW 1905AD-R145 R421

Артикул: SDMW 1905AD-R145 R421

В наличии

В корзину

Описание

Характеристики

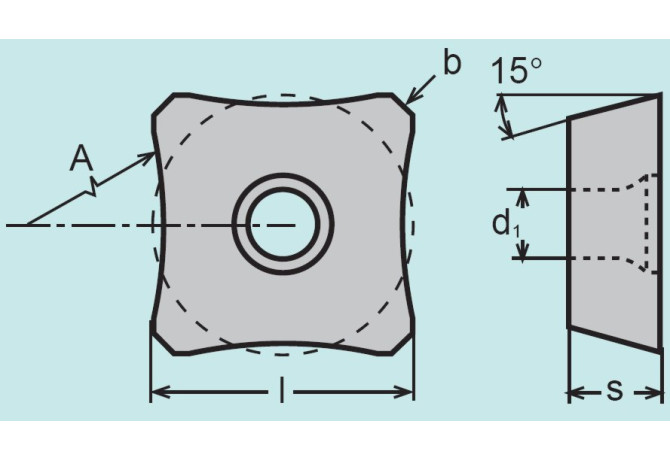

AN Clearance angle major

15 Degree

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6.35 mm

Delivery state valid from

10/1/2007

DIN

SD1905 3N

EPSR Insert included angle

90 Degree

FamilyProducts

indexable insert for weld seam scarfing external

GRDMFG Grade manufacturers designation

R421

IC Inscribed circle diameter

19.05 mm

ID Technical product number

SDMW 1905AD-R145 R421

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

19.05 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1905 3N

Name Identifying order number

SDMW 1905AD-R145 R421

RE Corner radius

0.8 mm

S Insert thickness

5.3 mm

S1 Insert thickness total

5.3 mm

STDDES Standard designation

SDMW1905AD

TCINS Tolerance class insert

Working process

No working processes available
