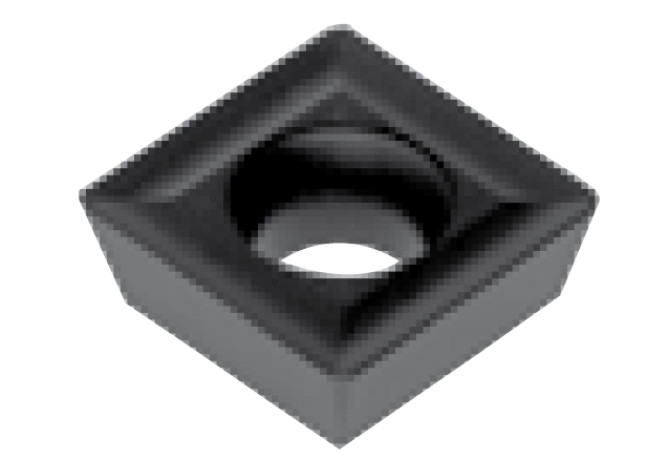

SDMT120408 SN R635

Артикул: SDMT120408 SN R635

В наличии

В корзину

Описание

Характеристики

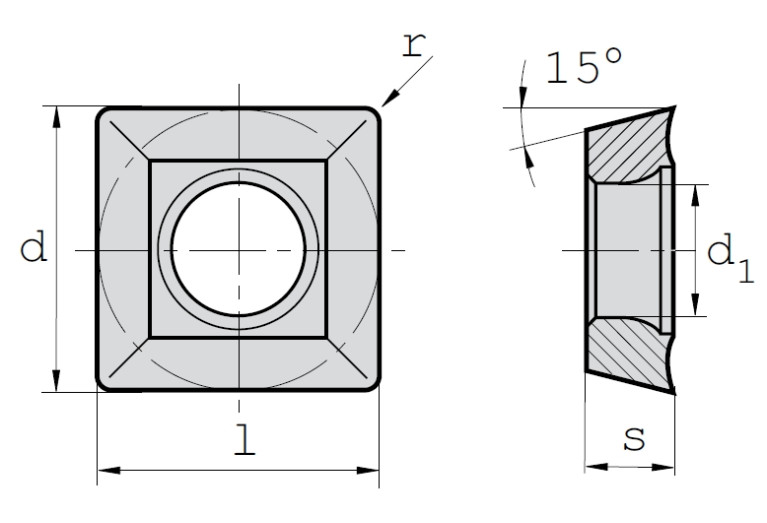

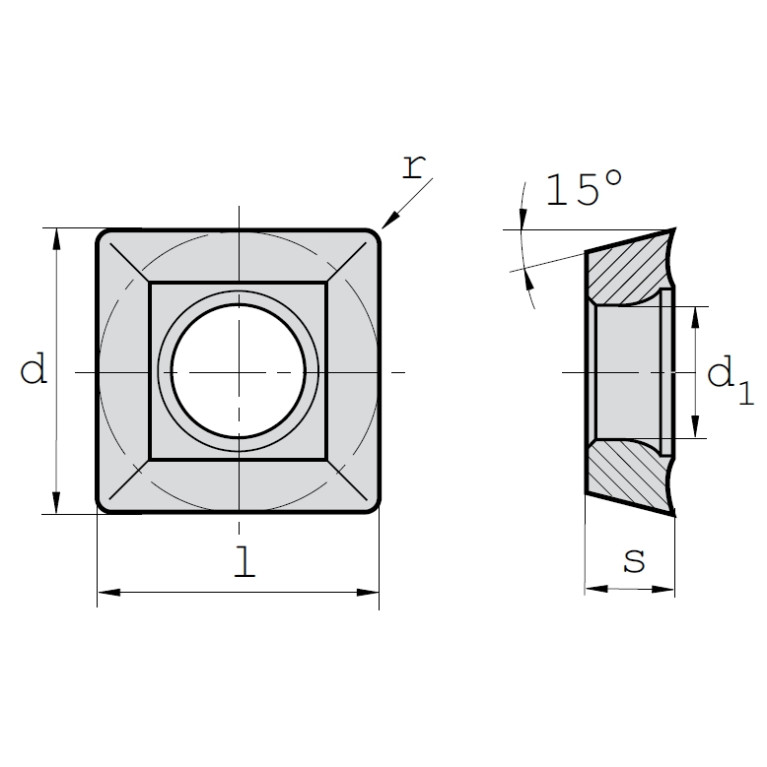

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

051

DIN

SD1204 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDMFG Grade manufacturers designation

R635

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SDMT120408 SN R635

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204 3N

Name Identifying order number

SDMT120408 SN R635

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDMT120408SN

STDDESAnsi Standard designation ANSI

SDMT432SN

TCINS Tolerance class insert

Working process

No working processes available
