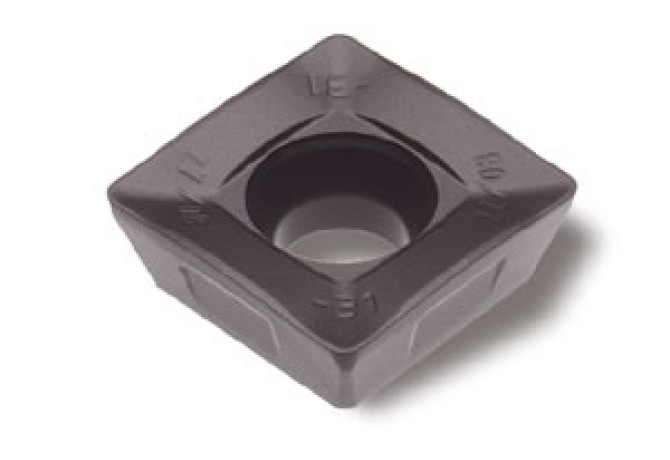

SDMT 1205ZZSN-31 SR216

Артикул: SDMT 1205ZZSN-31 SR216

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

0.95 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5 mm

DIN

SD1205ZZ4N

EPSR Insert included angle

90 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

SR216

GRDPRIO Standard designation of the grade main application

HC-K10

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1205ZZ4N

Name Identifying order number

SDMT 1205ZZSN-31 SR216

RE Corner radius

0.8 mm

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

SDMT1205ZZSN

TCINS Tolerance class insert

Working process

No working processes available
