Главная Каталог продукции Toolunited 15 201-02 - Square insert SDHT 1204AESN S26T

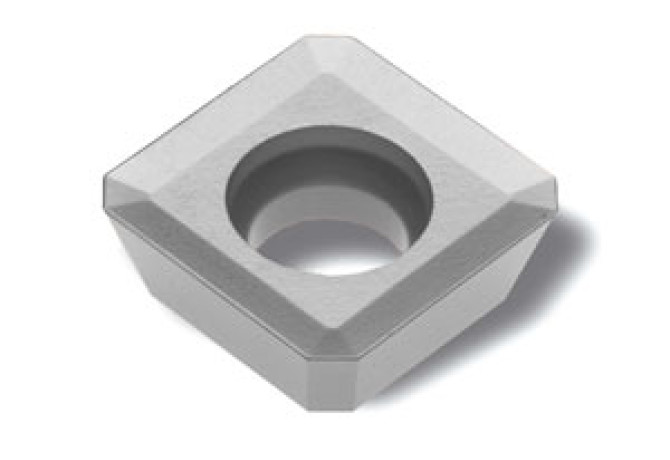

SDHT 1204AESN S26T

Артикул: 126729

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

1.74 mm

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

SD1204AE4N

EPSR Insert included angle

90 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

S26T

GRDPRIO Standard designation of the grade main application

HW-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

126729

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

KCH Corner chamfer angle

45 Degree

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD1204AE4N

Name Identifying order number

SDHT 1204AESN S26T

RE Corner radius

0.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SDHT1204AESN

TCINS Tolerance class insert

Working process

No working processes available
