Главная Каталог продукции Toolunited 15 201-02 - Square insert SCMX120512 R635

SCMX120512 R635

Артикул: SCMX120512 R635

В наличии

В корзину

Описание

Характеристики

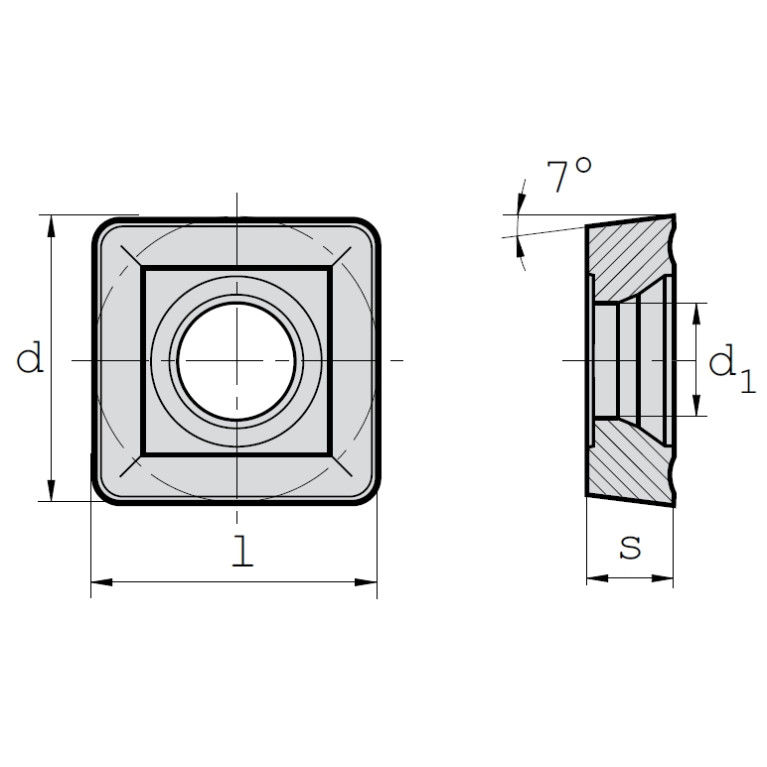

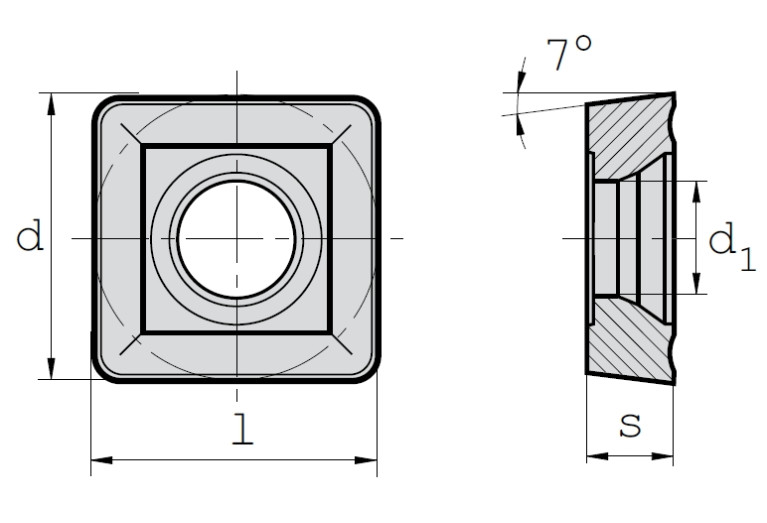

AN Clearance angle major

7 Degree

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

051

DIN

SC1205 7N

EPSR Insert included angle

90 Degree

FamilyProducts

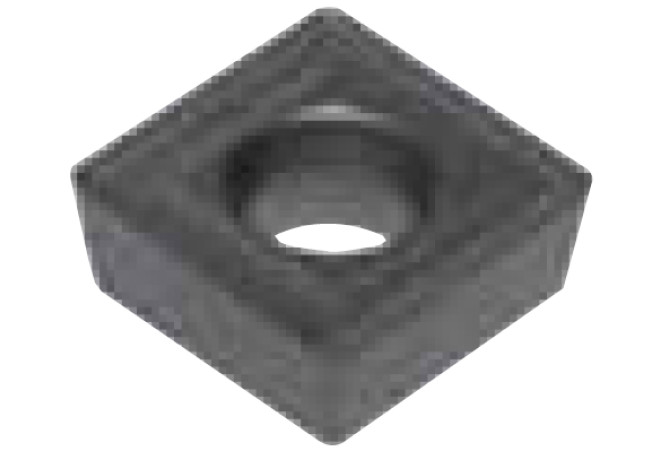

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDMFG Grade manufacturers designation

R635

GRDPRIO Standard designation of the grade main application

HC-P30

IC Inscribed circle diameter

12.7 mm

ID Technical product number

SCMX120512 R635

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1205 7N

Materials

P,M

Name Identifying order number

SCMX120512 R635

RE Corner radius

1.2 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

SCMX120512

TCINS Tolerance class insert

Working process

No working processes available
