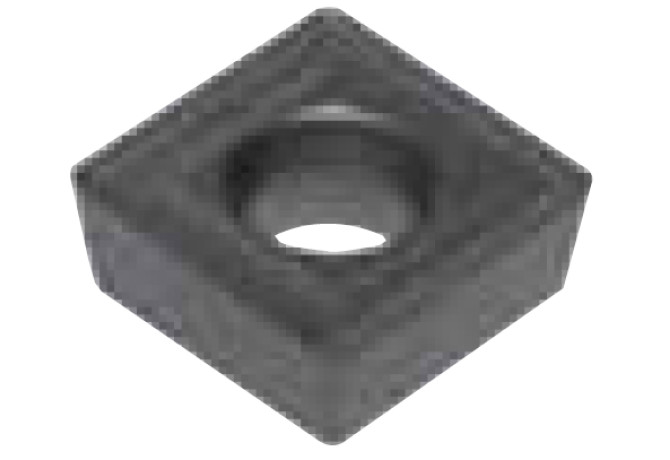

SCMX120512 LW225

Артикул: 6406637

В наличии

В корзину

Описание

Характеристики

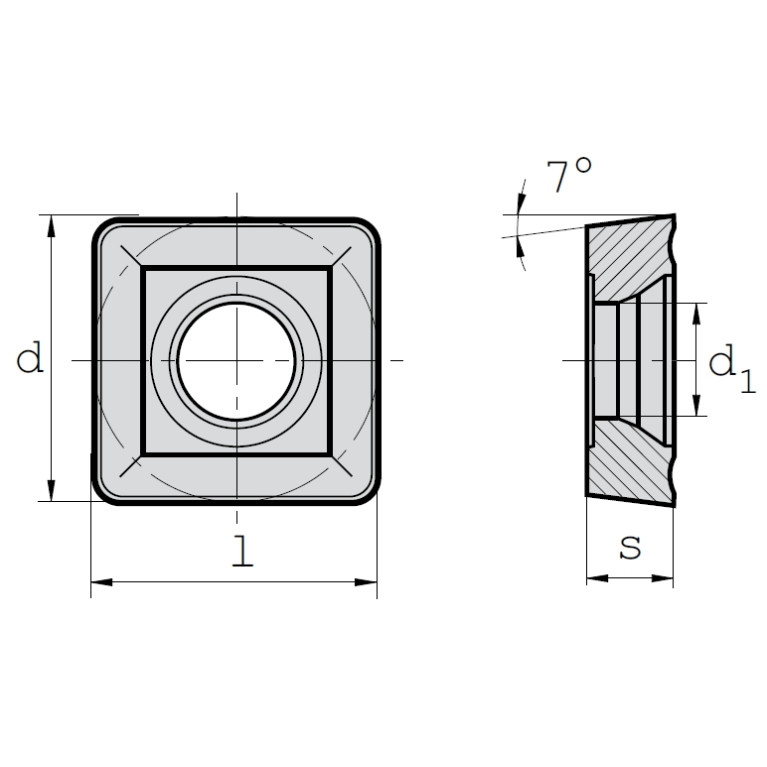

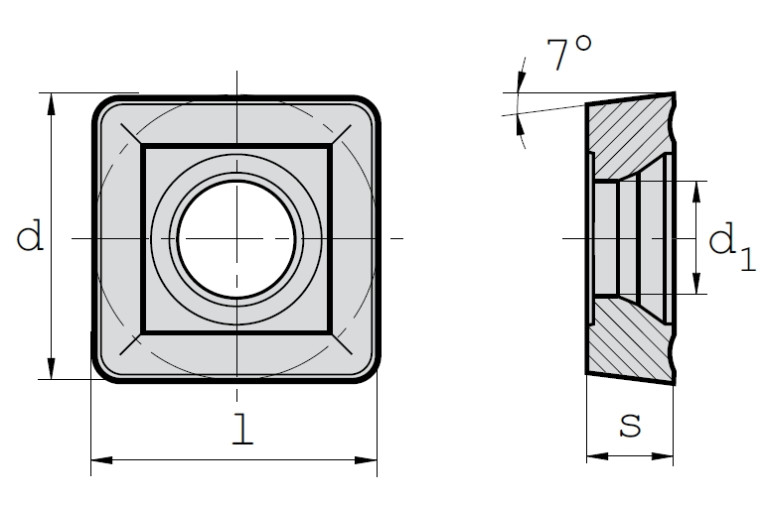

AN Clearance angle major

7 Degree

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2006

DIN

SC1205 7N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRDMFG Grade manufacturers designation

LW225

GRDPRIO Standard designation of the grade main application

HW-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6406637

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1205 7N

Materials

Name Identifying order number

SCMX120512 LW225

RE Corner radius

1.2 mm

S Insert thickness

5.56 mm

S1 Insert thickness total

5.56 mm

STDDES Standard designation

SCMX120512

TCINS Tolerance class insert

Working process

No working processes available
