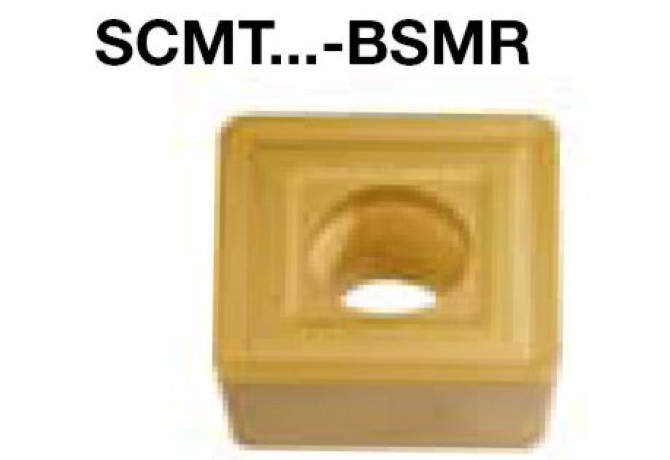

SCMT380932-BSMR LC215K

Артикул: SCMT380932-BSMR LC215K

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

BSMR

COATN Coating / Покрытие

MT-Al2O3

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

8.6 mm

Delivery state valid from

2/1/2009

DIN

SC3809 3N

EPSR Insert included angle

90 Degree

FamilyProducts

Square turning insert

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LC215K

GRDPRIO Standard designation of the grade main application

HC-P15

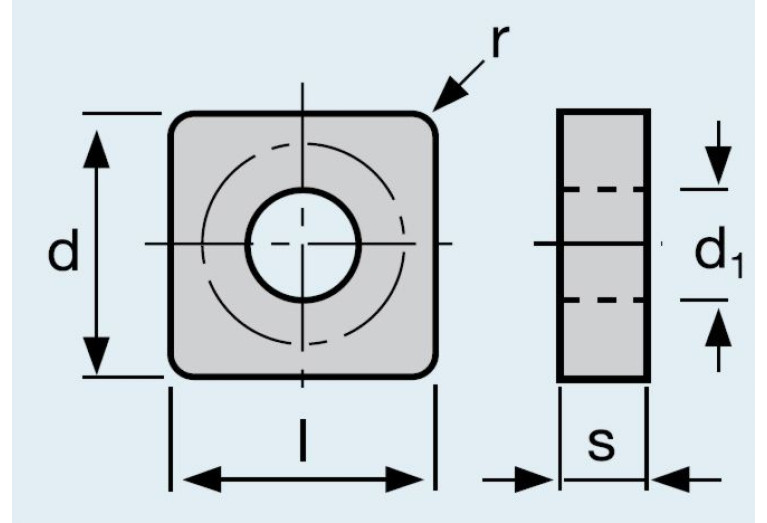

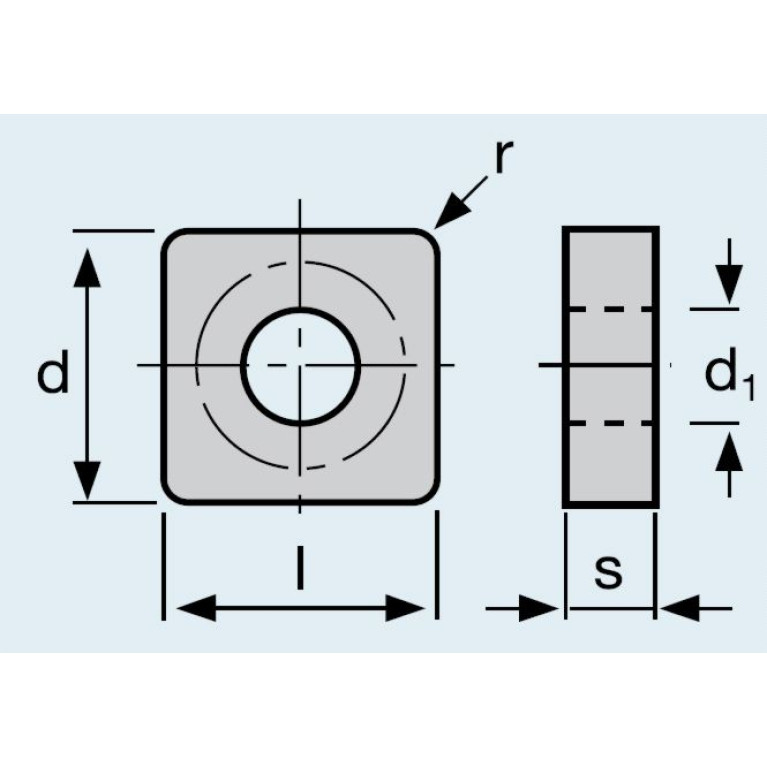

IC Inscribed circle diameter

38.1 mm

ID Technical product number

SCMT380932-BSMR LC215K

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

38.1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC3809 3N

Materials

Name Identifying order number

SCMT380932-BSMR LC215K

RE Corner radius

3.2 mm

S Insert thickness

9.52 mm

S1 Insert thickness total

9.52 mm

STDDES Standard designation

SCMT380932

TCINS Tolerance class insert

Working process

No working processes available
