Главная Каталог продукции Toolunited 15 201-02 - Square insert 262651 SM

262651 SM

Артикул: 262651 SM

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SC1204083N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT 1204 08 HPC 710 SM GARANT

GRDMFG Grade manufacturers designation

HB7010

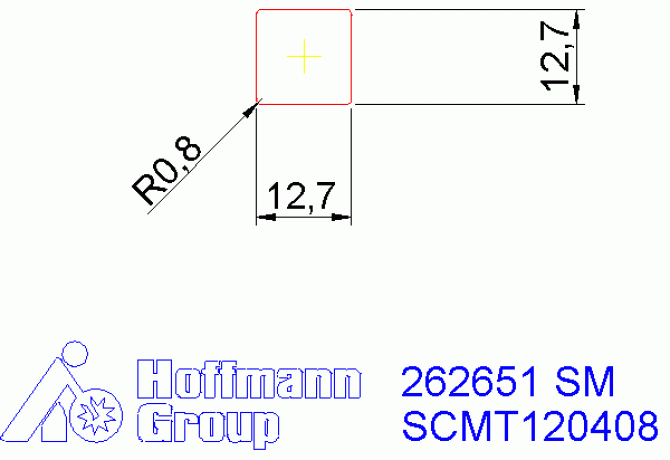

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

12 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC1204083N

Name Identifying order number

262651 SM

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

STDDES Standard designation

SCMT120408

STDDESAnsi Standard designation ANSI

SCMT432

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.009 kg
