262636 V4F

Артикул: 262636 V4F

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SC09T3043N

EPSR Insert included angle

90 Degree

FamilyProducts

SCMT 09T304 HPC 7135 V4F GARANT

GRDMFG Grade manufacturers designation

AC630M

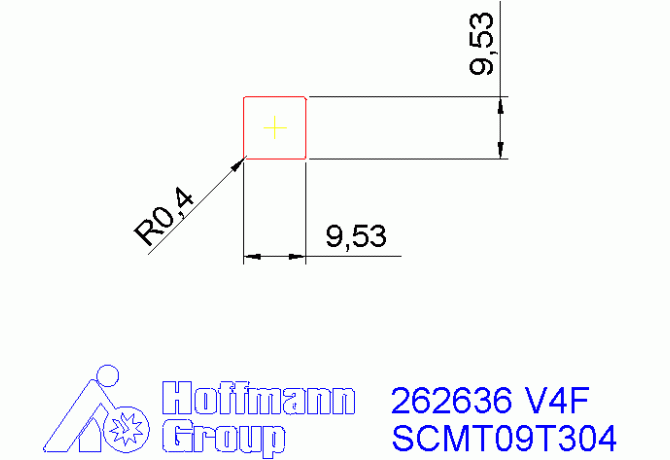

IC Inscribed circle diameter

9.525 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SC09T3043N

Name Identifying order number

262636 V4F

RE Corner radius

0.4 mm

S Insert thickness

3.97 mm

STDDES Standard designation

SCMT09T304

STDDESAnsi Standard designation ANSI

SCMT32.51

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.004 kg
