Главная Каталог продукции Toolunited 15 201-02 - Square insert 234054 ST1400

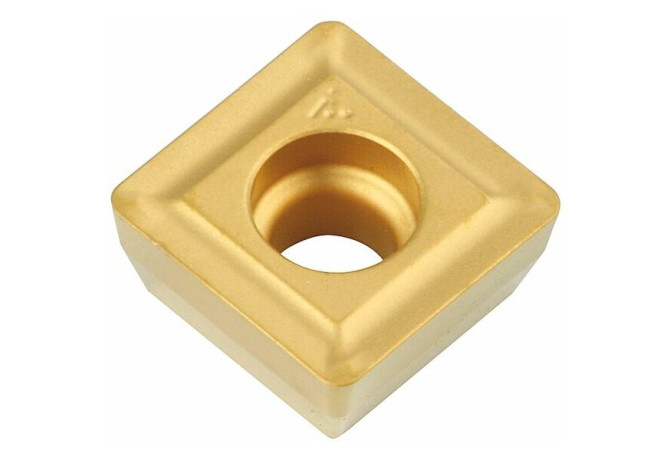

234054 ST1400

Артикул: 234054 ST1400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8.5 Degree

COATN Coating / Покрытие

TiCN/Al2O3/TiN

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SO0703064N

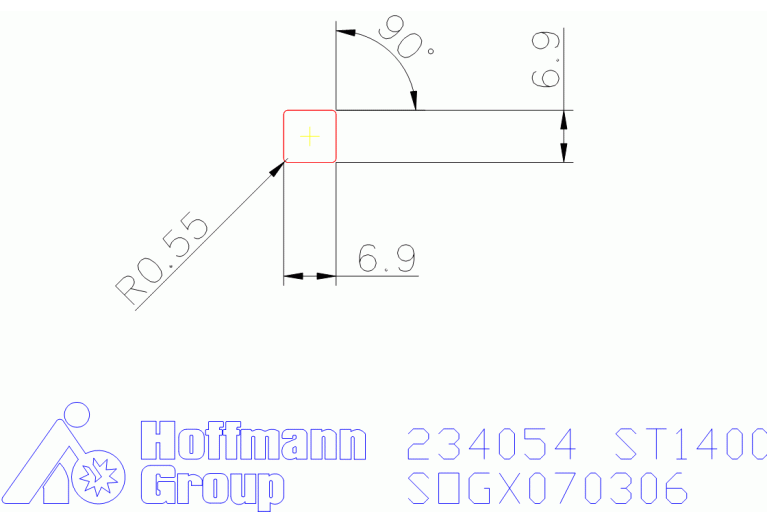

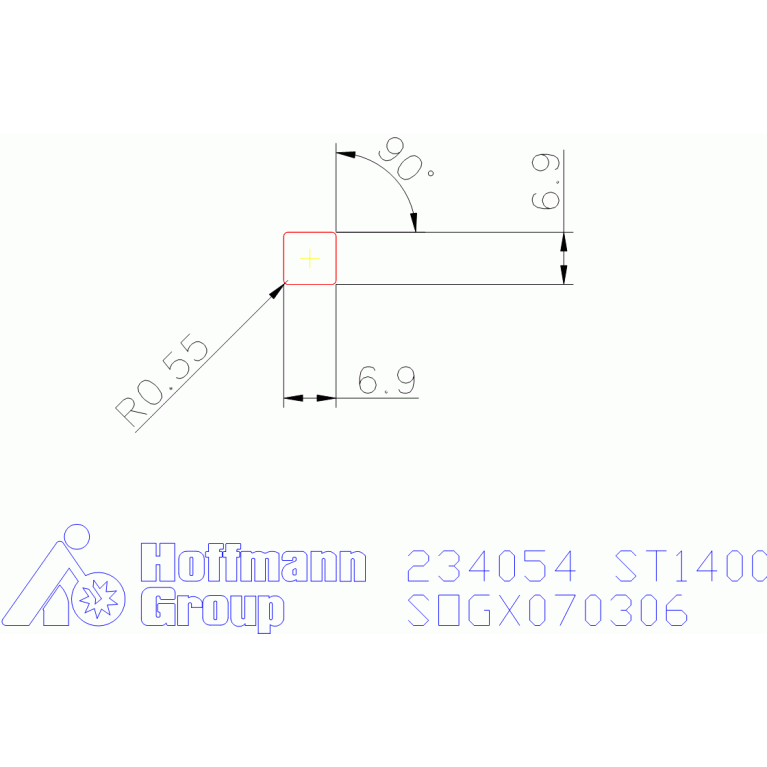

EPSR Insert included angle

90 Degree

FamilyProducts

SOGX 070306

GAN Insert rake angle

8 Degree

GRDMFG Grade manufacturers designation

HB6530

IC Inscribed circle diameter

6.9 mm

IFS Insert mounting style code

4 - Counter bore for screws with taper angle from 70° to 90°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

6.9 mm

LE Cutting edge effective length

6.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO0703064N

Name Identifying order number

234054 ST1400

NOI Insert index count

RE Corner radius

0.55 mm

S Insert thickness

3.1 mm

S1 Insert thickness total

3.19 mm

STDDES Standard designation

SOGX070306

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.002 kg
