Главная Каталог продукции Toolunited 15 201-02 - Square insert 223650 9

223650 9

Артикул: 223650 9

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SD09T3083N

EPSR Insert included angle

90 Degree

FamilyProducts

SDMT...EN -41 X500 9 mm STELLRAM

GRDMFG Grade manufacturers designation

X500

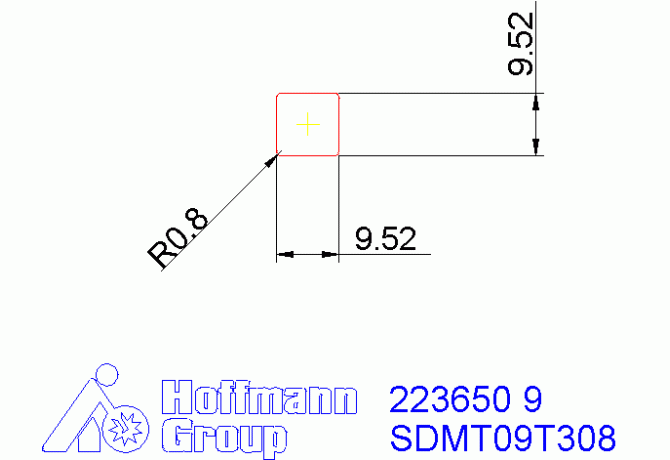

IC Inscribed circle diameter

9.52 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

LE Cutting edge effective length

7.52 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SD09T3083N

Name Identifying order number

223650 9

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

STDDES Standard designation

SDMT09T308

STDDESAnsi Standard designation ANSI

SDMT32.52

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.003 kg
