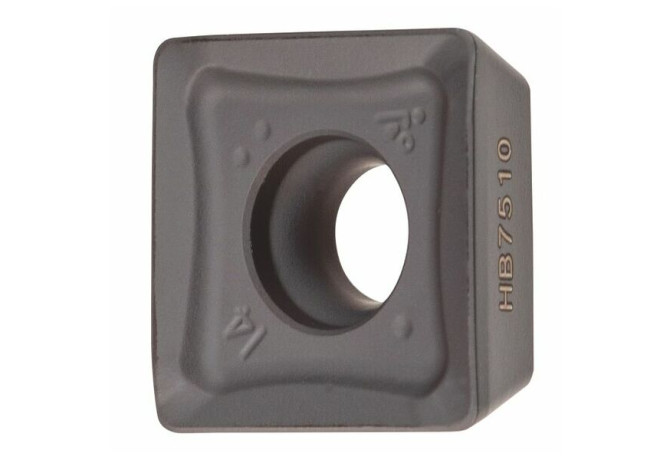

Главная Каталог продукции Toolunited 15 201-02 - Square insert 214868 ST1400

214868 ST1400

Артикул: 214868 ST1400

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SO1205083R

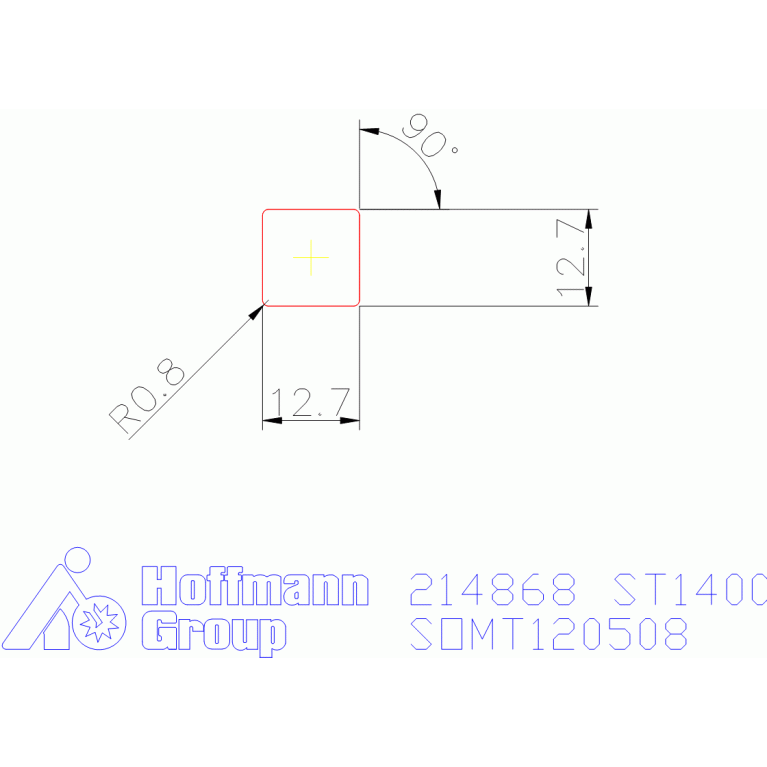

EPSR Insert included angle

90 Degree

FamilyProducts

SOMT 120508 PDER

GRDMFG Grade manufacturers designation

HB7510

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

LE Cutting edge effective length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SO1205083R

Name Identifying order number

214868 ST1400

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5.14 mm

S1 Insert thickness total

5.14 mm

STDDES Standard designation

SOMT120508

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.0069 kg
