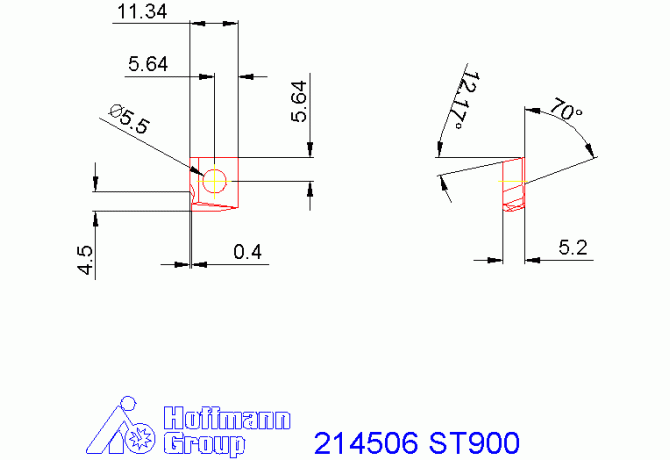

214506 ST900

Артикул: 214506 ST900

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

7 Degree

BS Wiper edge length

0.71 mm

CHW Corner chamfer width

0.4 mm

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SP1205ZC3N

EPSR Insert included angle

90 Degree

FamilyProducts

Wiper edge insert, one cutting edge HB 7525 GARANT

GRDMFG Grade manufacturers designation

HB7525

IC Inscribed circle diameter

11.35 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.35 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SP1205ZC3N

Name Identifying order number

214506 ST900

S Insert thickness

5.5 mm

STDDES Standard designation

SPHX1205ZC

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available

WT Weight of item

0.018 kg
