Главная Каталог продукции Toolunited 15 201-02 - Square insert 214292 ST1400

214292 ST1400

Артикул: 214292 ST1400

В наличии

В корзину

Описание

Характеристики

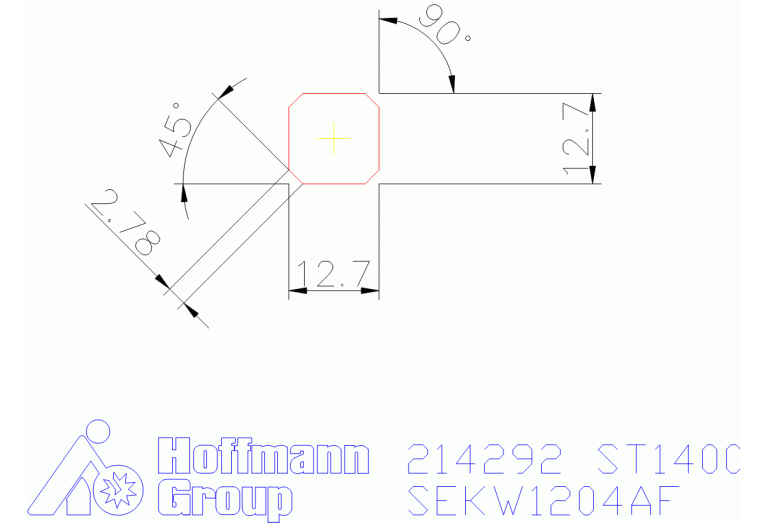

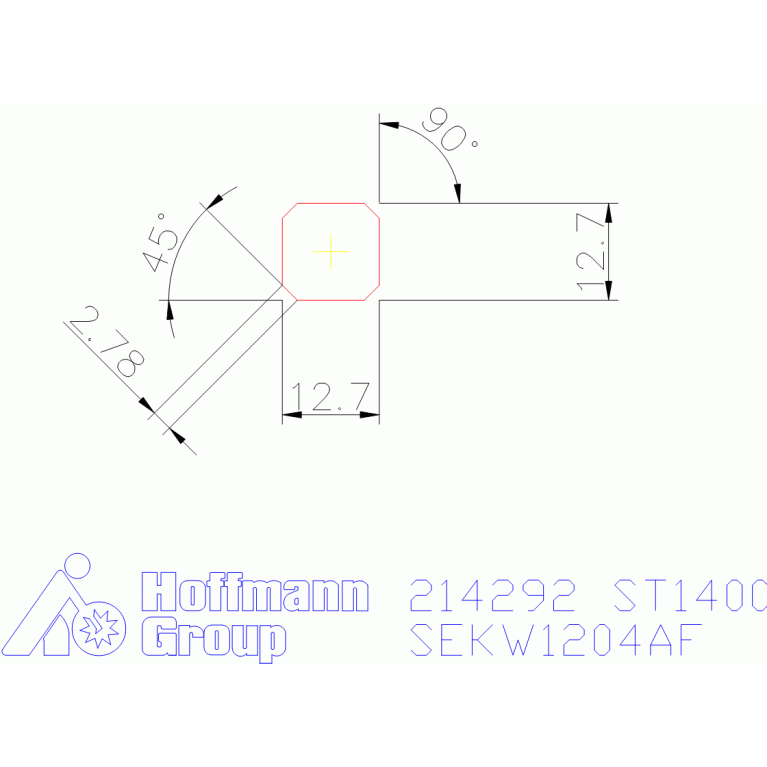

AN Clearance angle major

20 Degree

AS Clearance angle wiper edge

25 Degree

BS Wiper edge length

2.78 mm

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

SE1204AF3N

EPSR Insert included angle

90 Degree

FamilyProducts

SEKW 1204 AFTN

GRDMFG Grade manufacturers designation

HB7515

IC Inscribed circle diameter

12.7 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

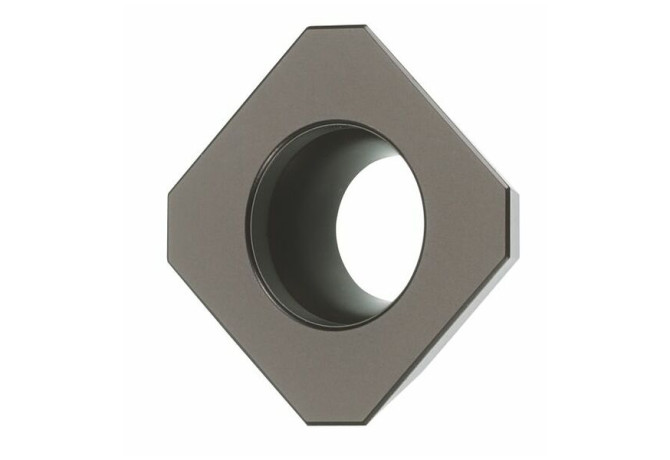

201-02 - Square insert

KRINS Cutting edge angle major

45 Degree

L Cutting edge length

12.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1204AF3N

Name Identifying order number

214292 ST1400

NOI Insert index count

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SEKW1204AF

TCE Tipped cutting edge code

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available

WT Weight of item

0.006 kg
