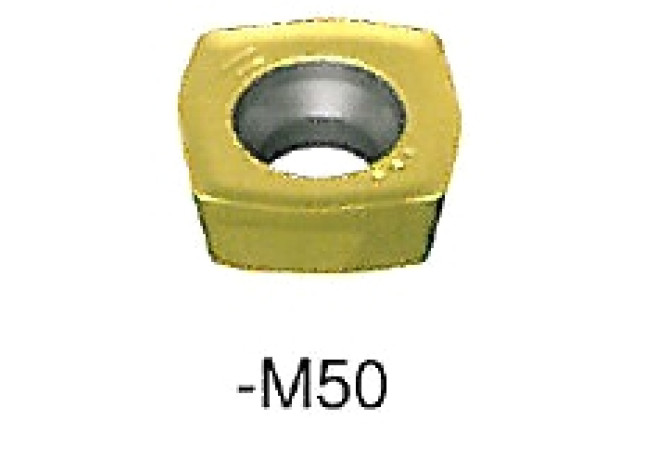

XOLX 120410SR-M50 SR226+

Артикул: 11579418

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

9 Degree

BS Wiper edge length

2.2 mm

CBMD Chip breaker manufacturers designation

M50

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

DIN

XO1204107R

FamilyProducts

milling insert for Maximill HFC endmill

GRD2ND Standard designation of the grade 2nd application

HC-K20

GRD3RD Standard designation of the grade 3rd application

HC-M25

GRDMFG Grade manufacturers designation

SR226+

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

12.7 mm

ID Technical product number

11579418

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

12 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XO1204107R

Materials

P,M,K,S

Name Identifying order number

XOLX 120410SR-M50 SR226+

RE Corner radius

1 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

XOLX120410SR

TCINS Tolerance class insert

Working process

No working processes available
