XDLX 09T308SR-M50 CTC3215

Артикул: 11574473

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.5 mm

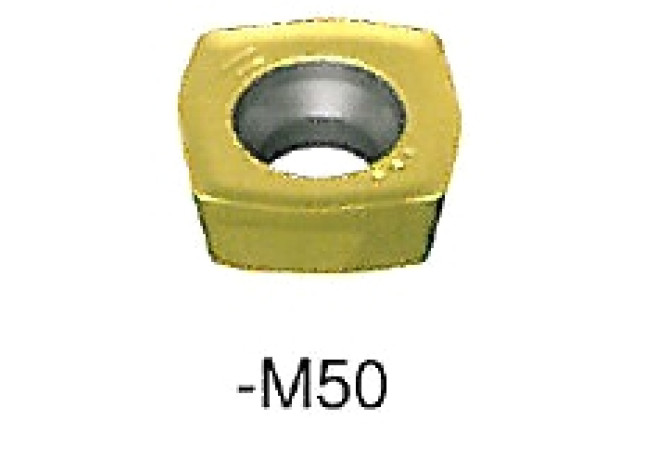

CBMD Chip breaker manufacturers designation

M50

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

DIN

XD09T3083R

FamilyProducts

milling insert for Maximill HFC endmill

GRDMFG Grade manufacturers designation

CTC3215

GRDPRIO Standard designation of the grade main application

HC-K15

IC Inscribed circle diameter

9.6 mm

ID Technical product number

11574473

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

9 mm

LE Cutting edge effective length

1 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XD09T3083R

Materials

Name Identifying order number

XDLX 09T308SR-M50 CTC3215

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

XDLX09T308SR

TCINS Tolerance class insert

Working process

No working processes available
