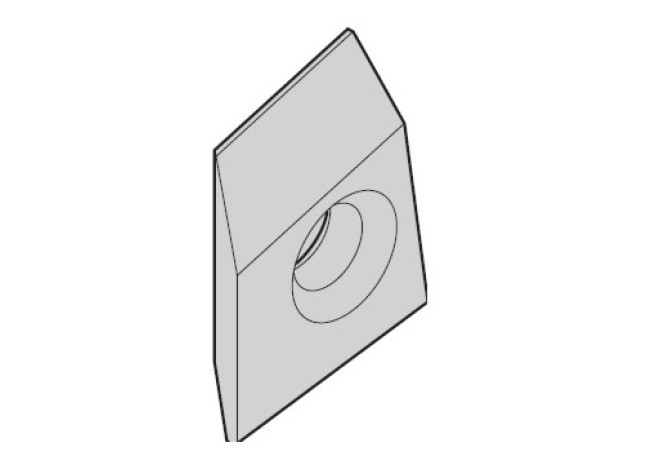

BGHX15L508PCFRGG K110M

Артикул: 1981264

В наличии

В корзину

Описание

Характеристики

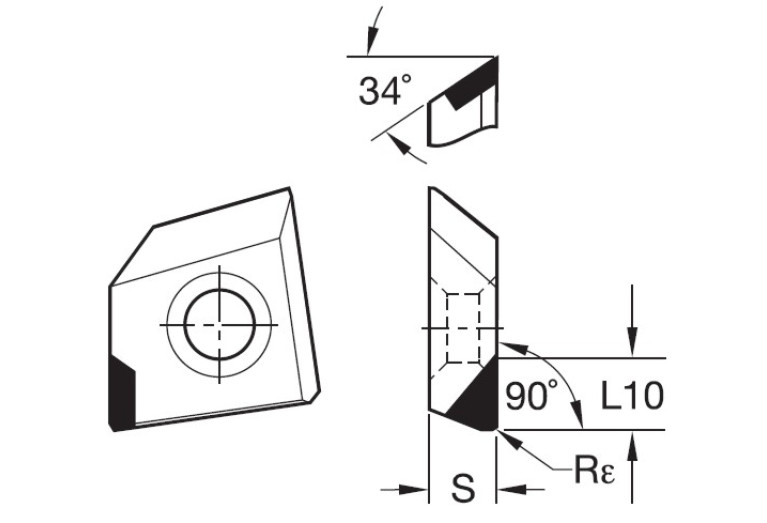

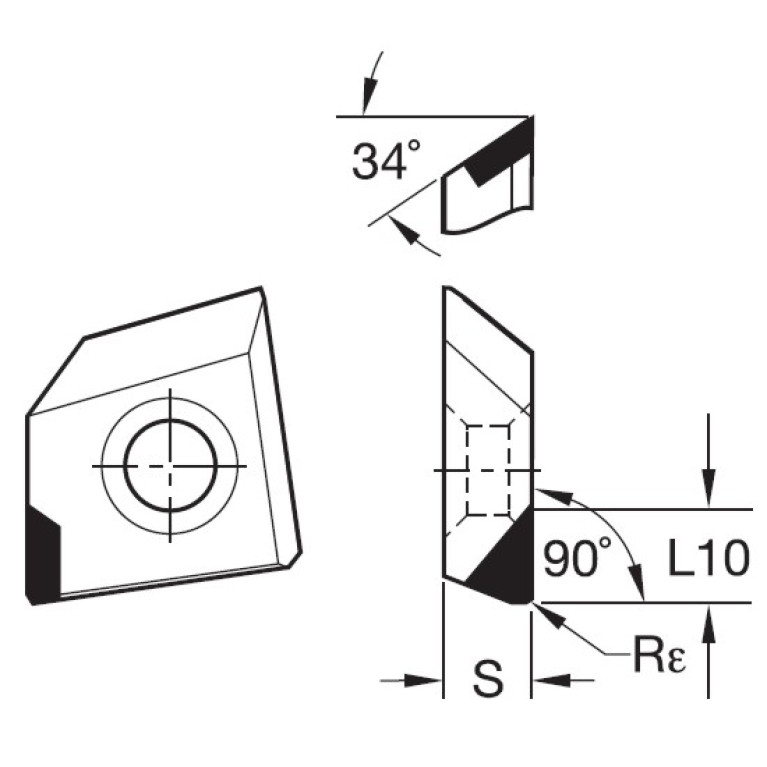

AN Clearance angle major

30 Degree

BN Face land width

0.02 mm

CHW Corner chamfer width

1.2 mm

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

11/20/2015

DIN

KH-WP BGHX10.5

EPSR Insert included angle

82 Degree

FamilyProducts

BGHX insert with radius

GRD2ND Standard designation of the grade 2nd application

HW-N15

GRD3RD Standard designation of the grade 3rd application

HW-S10

GRDMFG Grade manufacturers designation

K110M

GRDPRIO Standard designation of the grade main application

HW-K15

ID Technical product number

1981264

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

10.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

KH-WP BGHX10.5

Materials

Name Identifying order number

BGHX15L508PCFRGG K110M

RE Corner radius

0.8 mm

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

BGHX15L508PC

STDDESAnsi Standard designation ANSI

BGHX15L508PC

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling
