XPNT160412-BP LC615E

Артикул: 6408318

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

14 Degree

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

MT-CVD

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

6 mm

Delivery state valid from

1/9/2013

DIN

XP1604 3R

FamilyProducts

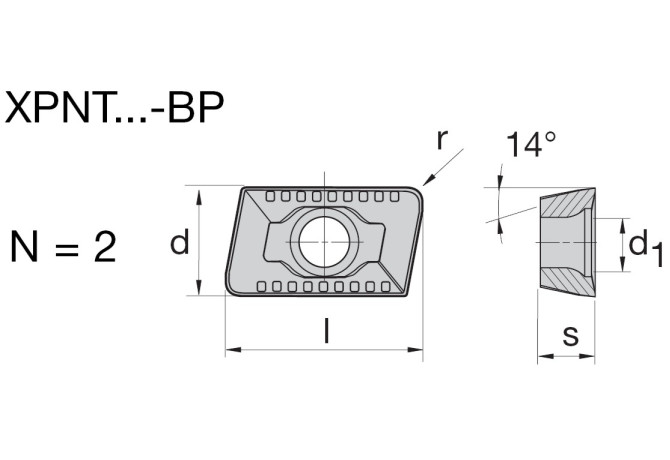

indexable insert XPNT...-BP

GRD2ND Standard designation of the grade 2nd application

HC-K15

GRDMFG Grade manufacturers designation

LC615E

IC Inscribed circle diameter

9.56 mm

ID Technical product number

6408318

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

16 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XP1604 3R

Materials

Name Identifying order number

XPNT160412-BP LC615E

RE Corner radius

1.2 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

XPNT160412

TCINS Tolerance class insert

Working process

No working processes available
