Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert CNHW 1005 T25PU

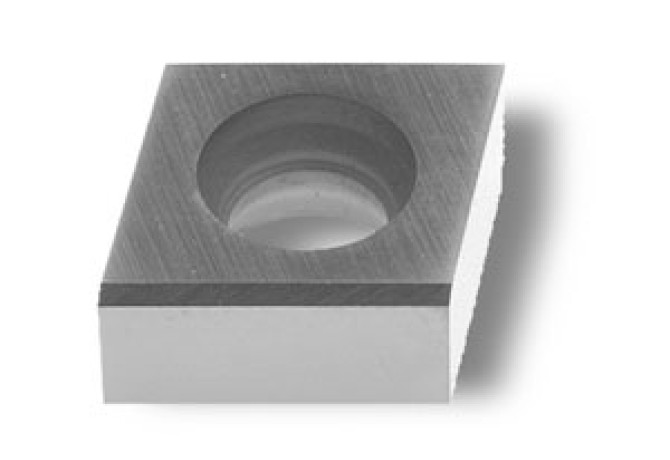

CNHW 1005 T25PU

Артикул: CNHW 1005 T25PU

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

ANN Clearance angle minor

0 Degree

CB Chip breaker face count

0 - Without chip breaker

CECC Cutting edge condition code

T - Chamfered

CHW Corner chamfer width

0.5 mm

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.7 mm

EPSR Insert included angle

80 Degree

FamilyProducts

carbide milling insert

GRDMFG Grade manufacturers designation

T25PU

GRDPRIO Standard designation of the grade main application

HW-P25

IC Inscribed circle diameter

10 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KCH Corner chamfer angle

45 Degree

L Cutting edge length

10.15 mm

Name Identifying order number

CNHW 1005 T25PU

S Insert thickness

5.4 mm

S1 Insert thickness total

5.4 mm

TCINS Tolerance class insert

W1 Insert width

10 mm

Working process

No working processes available
