APKT1604PDSR-BP R2624

Артикул: APKT1604PDSR-BP R2624

В наличии

В корзину

Описание

Характеристики

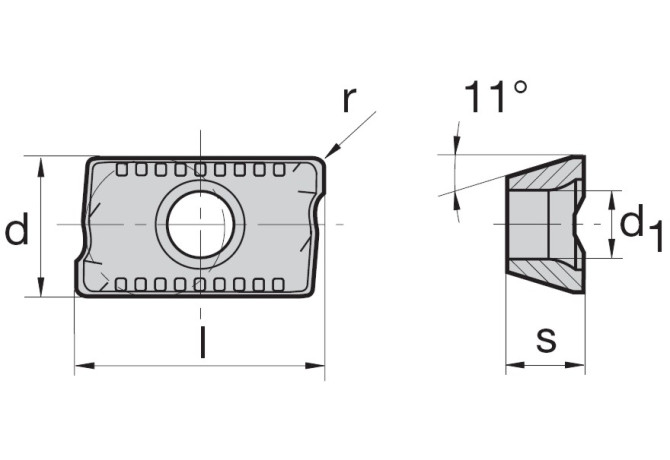

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

TiAIN

COMPC Company code

BK - Boehlerit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.5 mm

Delivery state valid from

12/1/2013

DIN

AP1604PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

85° Rhomboidic insert

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRDMFG Grade manufacturers designation

R2624

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

9.52 mm

ID Technical product number

APKT1604PDSR-BP R2624

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

16.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1604PD3R

Materials

P,M,K

Name Identifying order number

APKT1604PDSR-BP R2624

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

5.26 mm

S1 Insert thickness total

5.26 mm

STDDES Standard designation

APKT1604PDSR

TCE Tipped cutting edge code

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

9.52 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling
