Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert APHT 100308SR-33P GM246

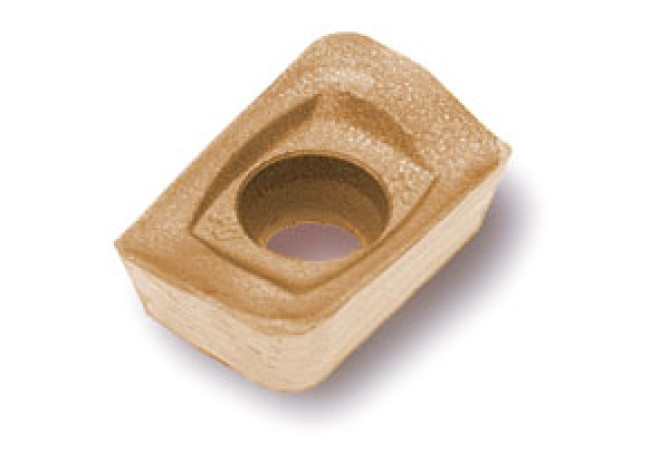

APHT 100308SR-33P GM246

Артикул: APHT 100308SR-33P GM246

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

ANN Clearance angle minor

15 Degree

BS Wiper edge length

2.4 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

33P

CECC Cutting edge condition code

S - Chamfered and rounded

COMPC Company code

CE - Ceratizit

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

2.8 mm

DIN

AP1003083R

EPSR Insert included angle

85 Degree

FamilyProducts

carbide milling insert

GRD2ND Standard designation of the grade 2nd application

HC-M40

GRDMFG Grade manufacturers designation

GM246

GRDPRIO Standard designation of the grade main application

HC-P40

IC Inscribed circle diameter

6.65 mm

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

9.8 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1003083R

Name Identifying order number

APHT 100308SR-33P GM246

RE Corner radius

0.8 mm

S Insert thickness

3.5 mm

S1 Insert thickness total

3.5 mm

STDDES Standard designation

APHT100308SR

TCINS Tolerance class insert

W1 Insert width

6.65 mm

Working process

No working processes available
