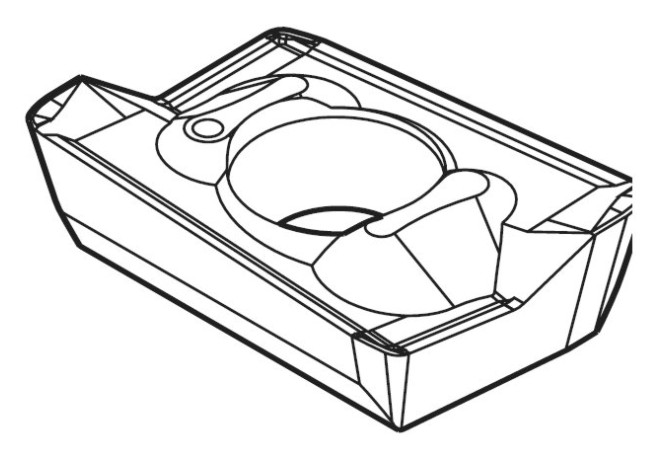

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert ADKT2328PDSR5GB KCPK30

ADKT2328PDSR5GB KCPK30

Артикул: 2209972

В наличии

В корзину

Описание

Характеристики

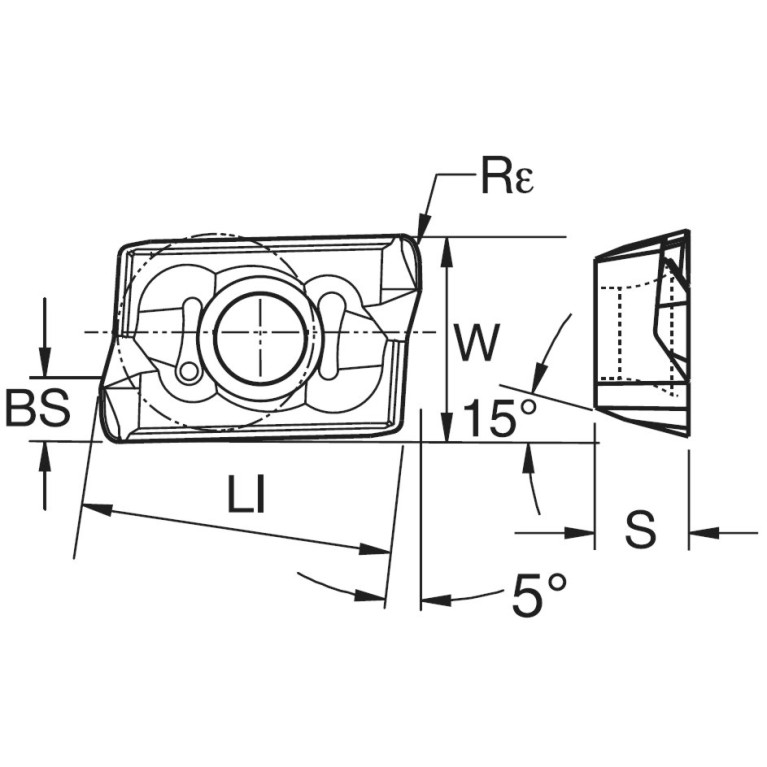

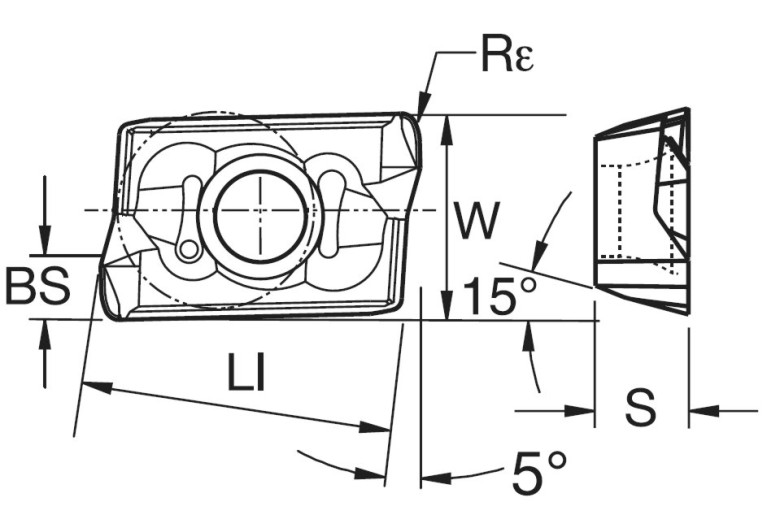

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.1 mm

BS Wiper edge length

2.6238 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

2.8 mm

COATN Coating / Покрытие

Al2 O3

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.3942 mm

Delivery state valid from

8/27/2014

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

INS NGE WITH CHIP BREAKER GB

GRDMFG Grade manufacturers designation

KCPK30

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10.0076 mm

ID Technical product number

2209972

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

14.9987 mm

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

14.9987 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADKT2328PDSR5GB KCPK30

NOI Insert index count

RE Corner radius

0.795 mm

S Insert thickness

4.5009 mm

S1 Insert thickness total

4.4958 mm

STDDES Standard designation

ADKT2328PDSR5GB

STDDESAnsi Standard designation ANSI

ADKT2328PDSR

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

10.0076 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling
