Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert ADKT2328PDSR5GB KC925M

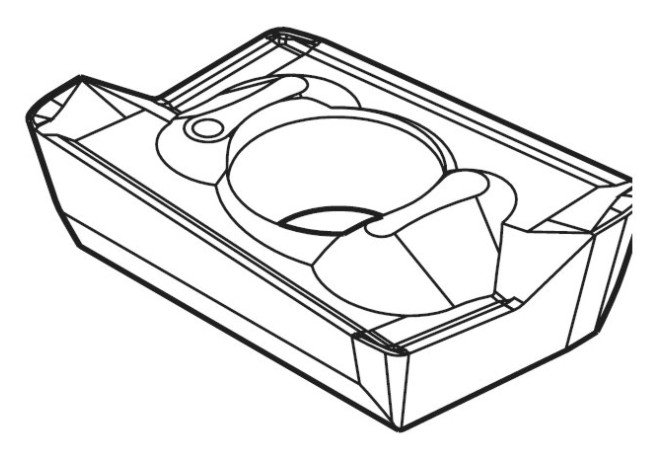

ADKT2328PDSR5GB KC925M

Артикул: 1596134

В наличии

В корзину

Описание

Характеристики

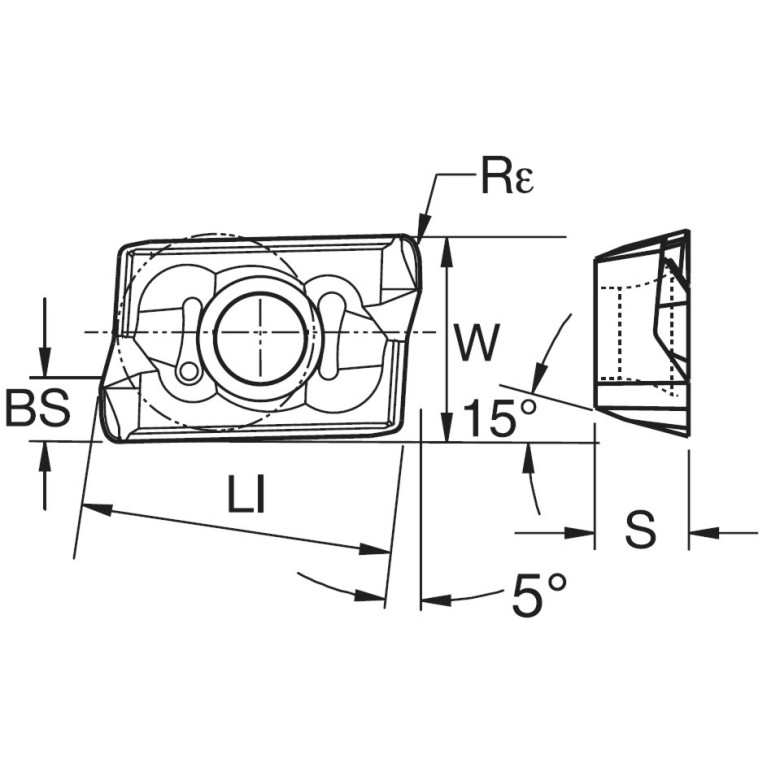

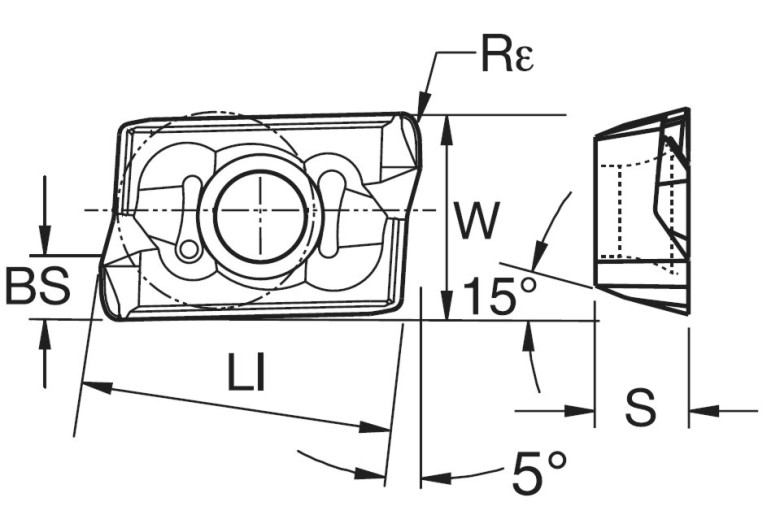

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.1 mm

BS Wiper edge length

2.6238 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

CHW Corner chamfer width

2.8 mm

COATN Coating / Покрытие

TiCN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.3942 mm

Delivery state valid from

8/27/2014

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

INS. NGE WITH CHIP BREAKER GB

GRDMFG Grade manufacturers designation

KC925M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10.0076 mm

ID Technical product number

1596134

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

14.9987 mm

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

14.9987 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADKT2328PDSR5GB KC925M

NOI Insert index count

RE Corner radius

0.795 mm

S Insert thickness

4.5009 mm

S1 Insert thickness total

4.4958 mm

STDDES Standard designation

ADKT2328PDSR5GB

STDDESAnsi Standard designation ANSI

ADKT2328PDSR

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

10.0076 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling

Главный задний угол (AN) / Clearance angle major (AN)

15 Degree
