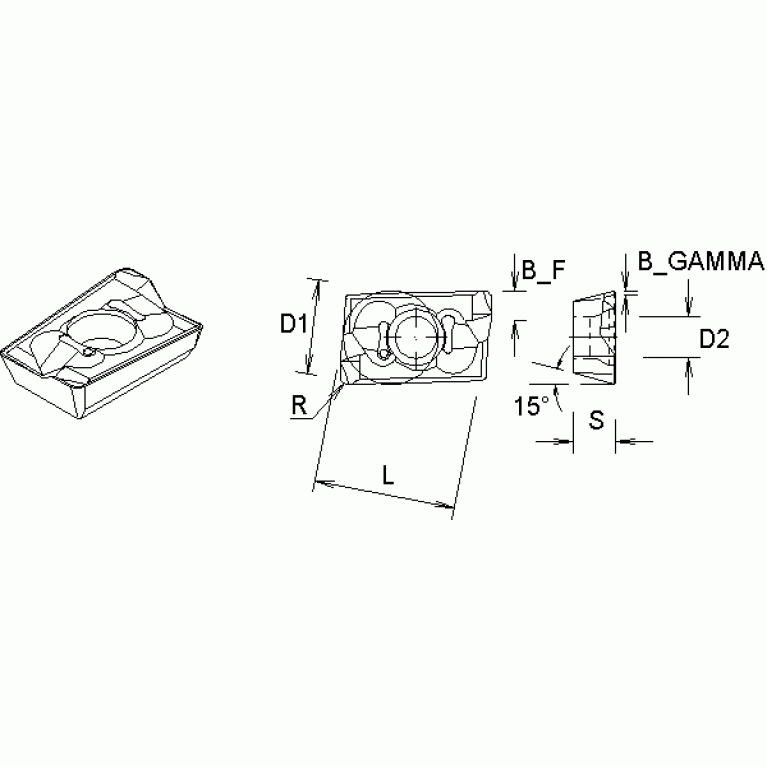

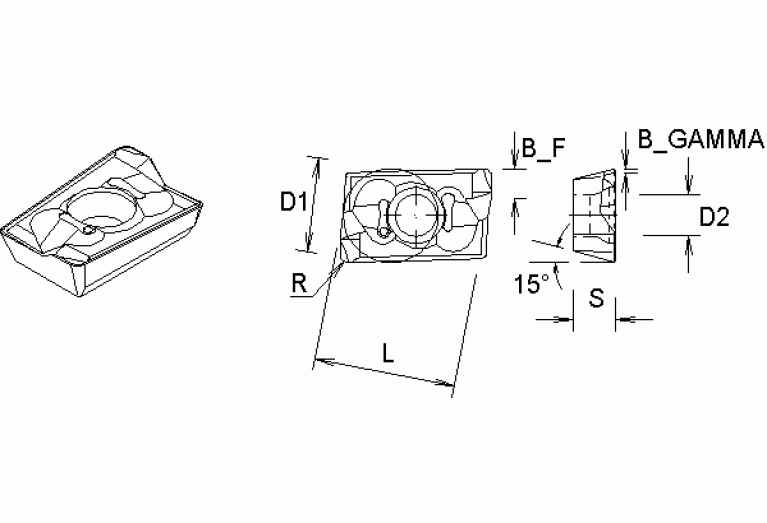

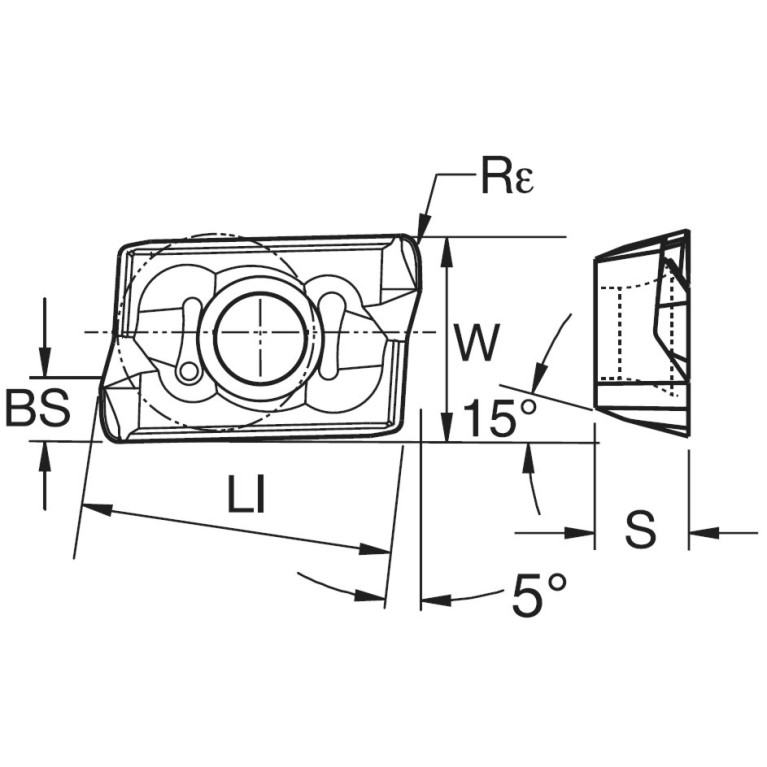

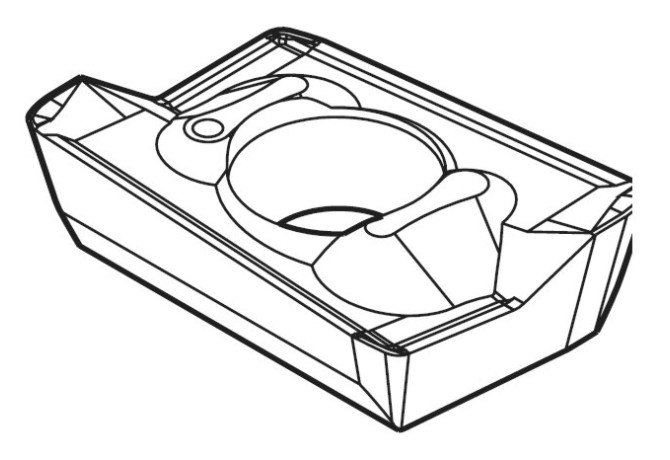

ADKT1545PDERGB KC525M

Артикул: 1566362

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

2.64 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

2.8 mm

COATN Coating / Покрытие

TiAlN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

1/4/2011

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

ADKT-GB, indexable insert for NGE-B

GRDMFG Grade manufacturers designation

KC525M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10 mm

ID Technical product number

1566362

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADKT1545PDERGB KC525M

NameAnsi Identifying order number inch alternative

ADKT2328PDER5GB KC525M

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

ADKT1545PDERGB

STDDESAnsi Standard designation ANSI

ADKT2328PDER

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

10 mm

Working process

FEC - Square shoulder milling
