Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert ADKT1545PDERGB KC520M

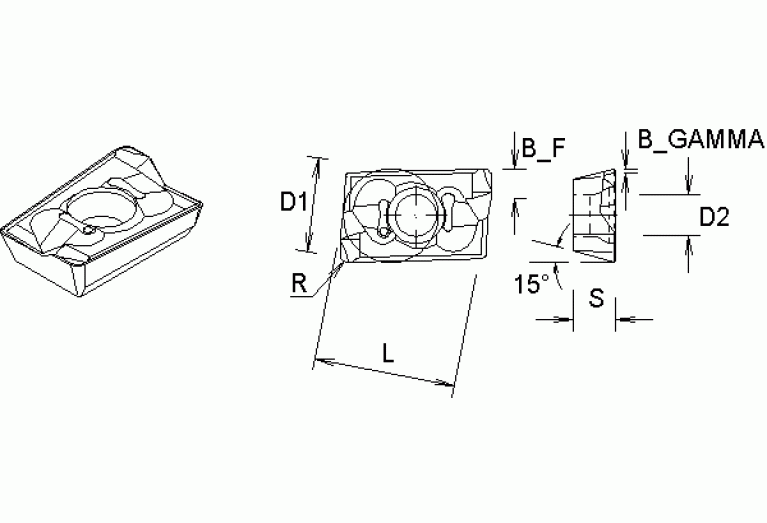

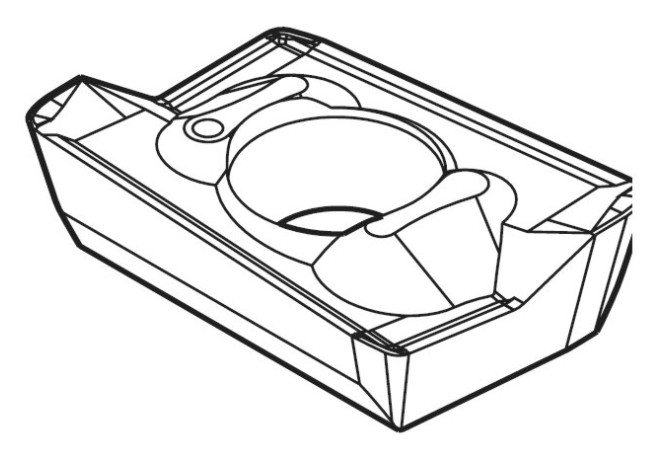

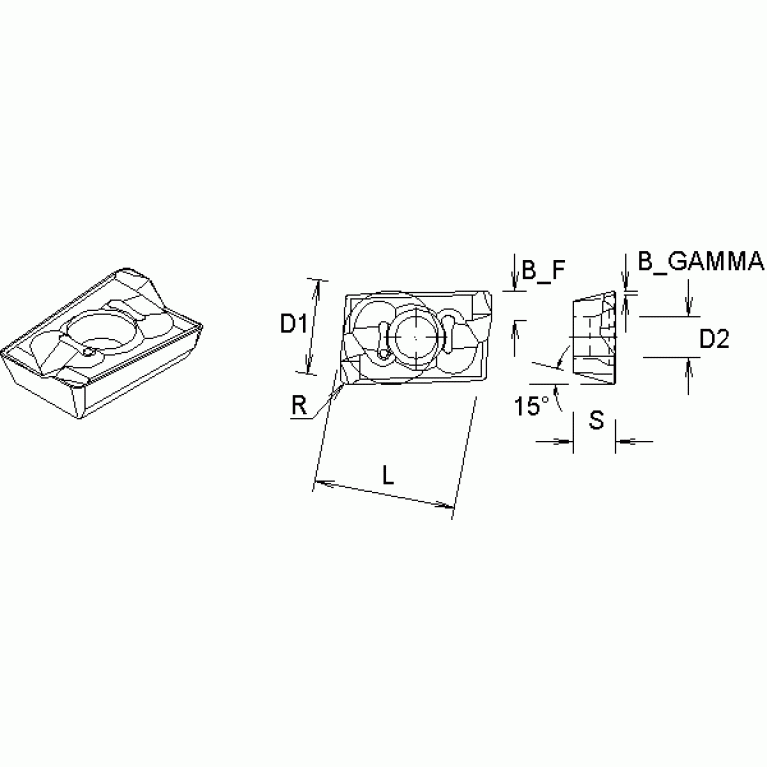

ADKT1545PDERGB KC520M

Артикул: 1566361

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

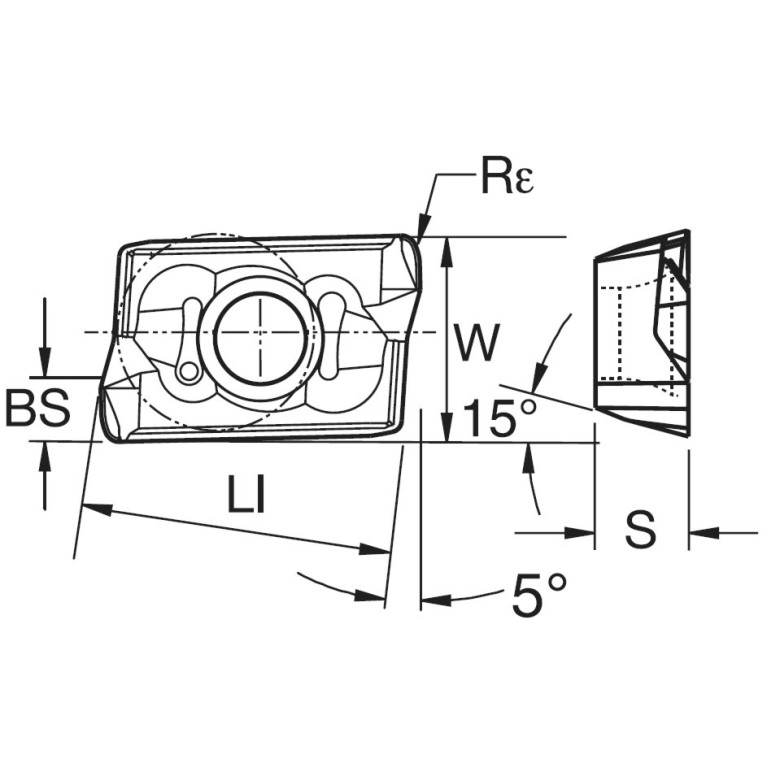

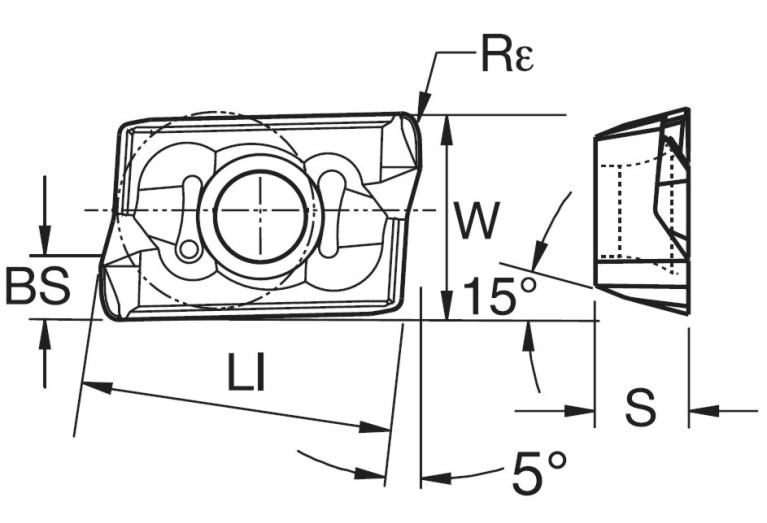

BS Wiper edge length

2.64 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

2.8 mm

COATN Coating / Покрытие

ALOX-SN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

ISO INSERT MILLING NGE

GRDMFG Grade manufacturers designation

KC520M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10 mm

ID Technical product number

1566361

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADKT1545PDERGB KC520M

NameAnsi Identifying order number inch alternative

ADKT2328PDER5GB KC520M

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

ADKT1545PDERGB

STDDESAnsi Standard designation ANSI

ADKT2328PDER

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

10 mm

Working process

FEC - Square shoulder milling
