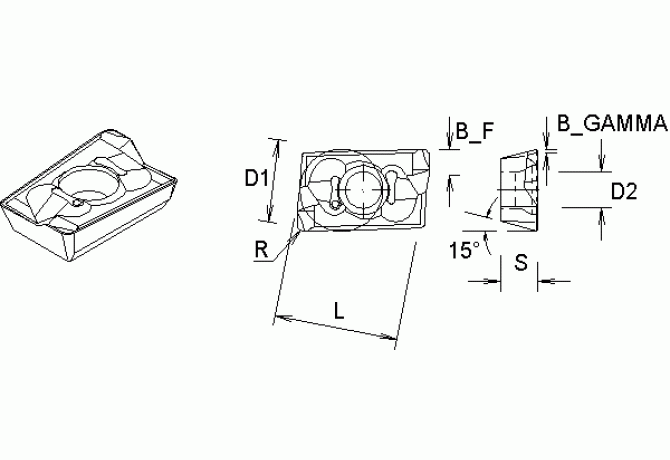

ADKT154512PDERGB KC520M

Артикул: 1566365

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BN Face land width

0.08 mm

BS Wiper edge length

2.64 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

CHW Corner chamfer width

2.8 mm

COATN Coating / Покрытие

ALOX-SN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

ISO INSERT MILLING NGE

GRDMFG Grade manufacturers designation

KC520M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10 mm

ID Technical product number

1566365

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADKT154512PDERGB KC520M

NameAnsi Identifying order number inch alternative

ADKT23283PDER5GB KC520M

NOI Insert index count

RE Corner radius

1.2 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

ADKT154512PDERGB

STDDESAnsi Standard designation ANSI

ADKT23283PDER

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

10 mm

Working process

FEC - Square shoulder milling
