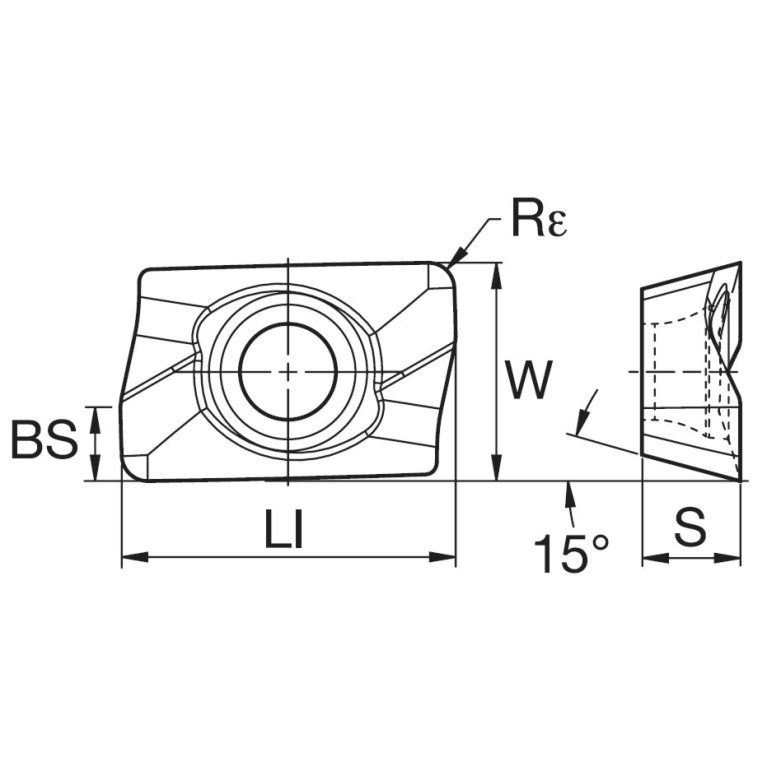

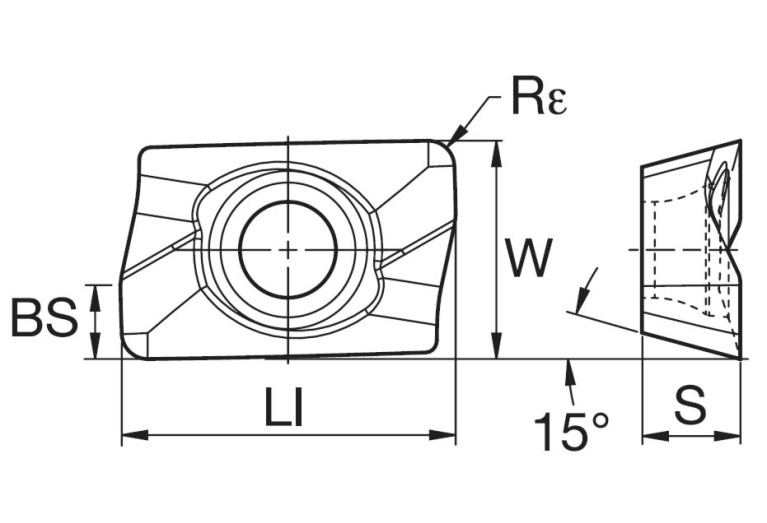

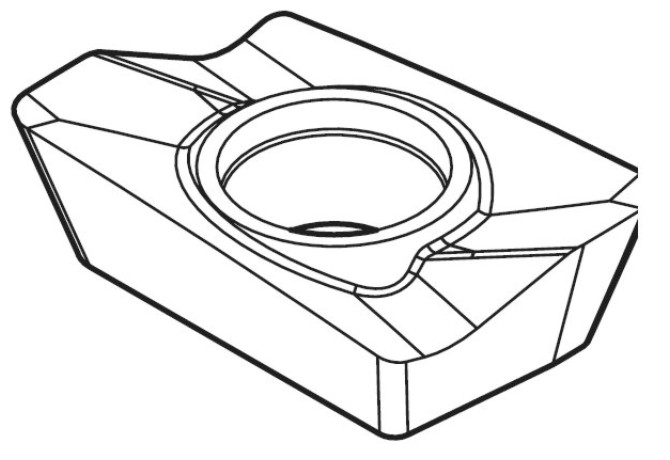

ADCT2328PDSR5LD KC525M

Артикул: 2229378

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

3.4544 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

TiAlN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

4.3942 mm

Delivery state valid from

8/27/2014

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

NGE INSERT FOR MILLING

GRDMFG Grade manufacturers designation

KC525M

GRDPRIO Standard designation of the grade main application

H W

IC Inscribed circle diameter

10.0076 mm

ID Technical product number

2229378

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

INSL Insert length

15.3416 mm

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

14.9987 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

M M-dimension

3.2944 mm

Name Identifying order number

ADCT2328PDSR5LD KC525M

NOI Insert index count

RE Corner radius

0.7874 mm

S Insert thickness

4.5009 mm

S1 Insert thickness total

4.4958 mm

STDDES Standard designation

ADCT1545PDSRLD

STDDESAnsi Standard designation ANSI

ADCT2328PDSR

TCINS Tolerance class insert

W1 Insert width

10.0076 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNU - Groove milling,FPL - Face milling
