Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert ADCT232816PDSRLD KCPK30

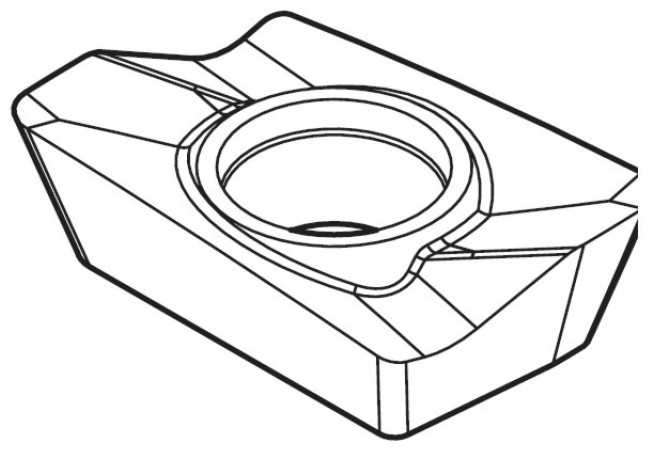

ADCT232816PDSRLD KCPK30

ADCT232816PDSRLD KCPK30 ADCT232816PDSRLD KCPK30 ADCT232816PDSRLD KCPK30

ADCT232816PDSRLD KCPK30

Kennametal
Артикул: 5329116
В наличии
В корзину
Описание
Характеристики

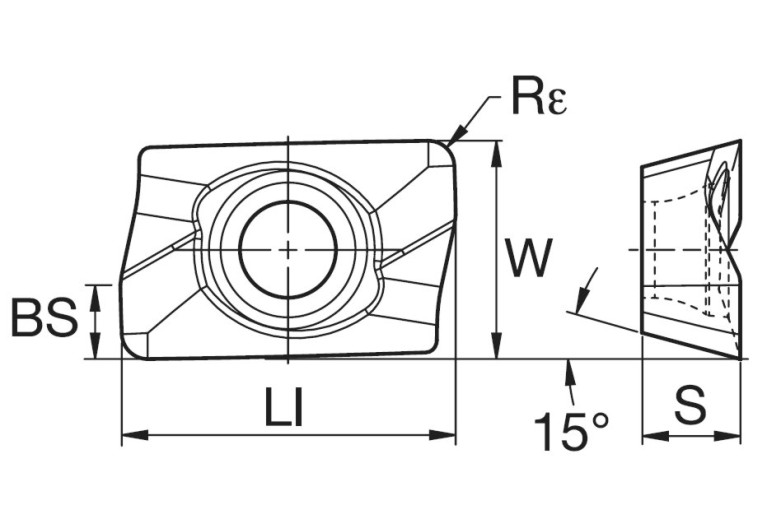

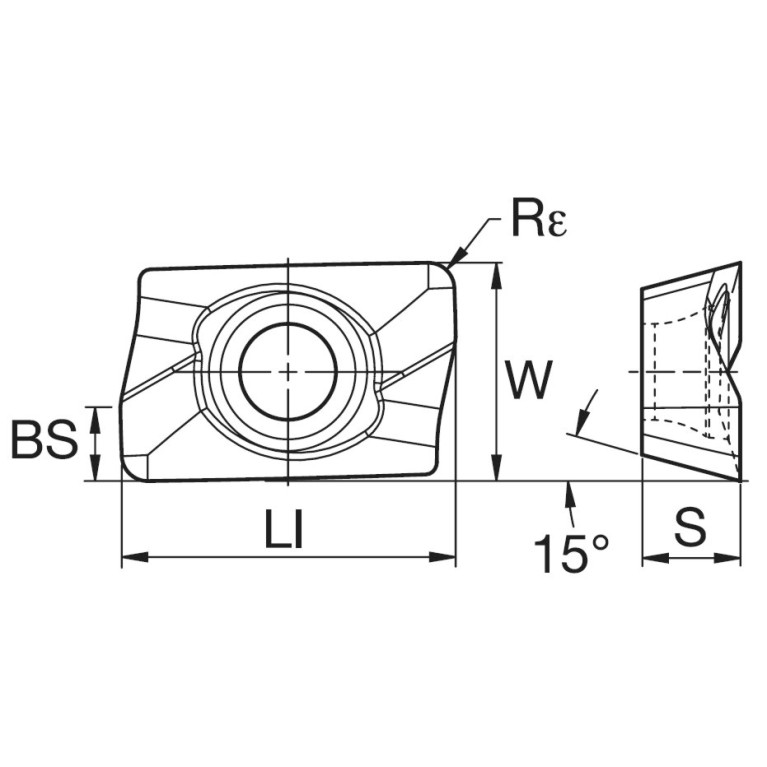

AN Clearance angle major
15 Degree
AS Clearance angle wiper edge
15 Degree
BN Face land width
0.1778 mm
CBMD Chip breaker manufacturers designation
LD
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating / Покрытие
Al2 O3
COMPC Company code
KH - Kennametal
CSP Coolant supply property
0 - Without coolant supply
D1 Fixing hole diameter
4.3942 mm
Delivery state valid from
8/27/2014
DIN
AD1545PD3R
EPSR Insert included angle
85 Degree
FamilyProducts
NGE INSERT FOR MILLING
GAN Insert rake angle
15 Degree
GB Face land angle
15 Degree
GRDMFG Grade manufacturers designation
KCPK30
GRDPRIO Standard designation of the grade main application
H W
ID Technical product number
5329116
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
INSL Insert length
14.6558 mm
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-05 - Parallelogram-shaped insert
KRINS Cutting edge angle major
90 Degree
L Cutting edge length
13.6144 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
AD1545PD3R
Name Identifying order number
ADCT232816PDSRLD KCPK30
NOI Insert index count
2
RE Corner radius
6.5278 mm
S Insert thickness
4.4196 mm
STDDES Standard designation
ADCT232816PDSRLD
STDDESAnsi Standard designation ANSI
ADCT232816PDSR
TCINS Tolerance class insert
C
W1 Insert width
9.7282 mm
Working process
No working processes available
