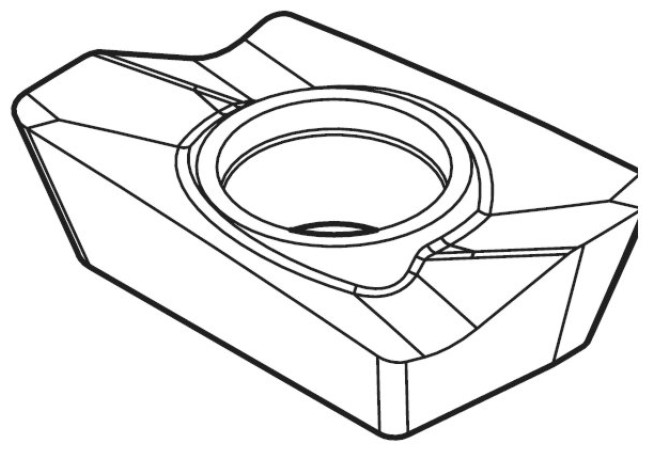

ADCT154524PDERLD KC725M

Артикул: 2229418

В наличии

В корзину

Описание

Характеристики

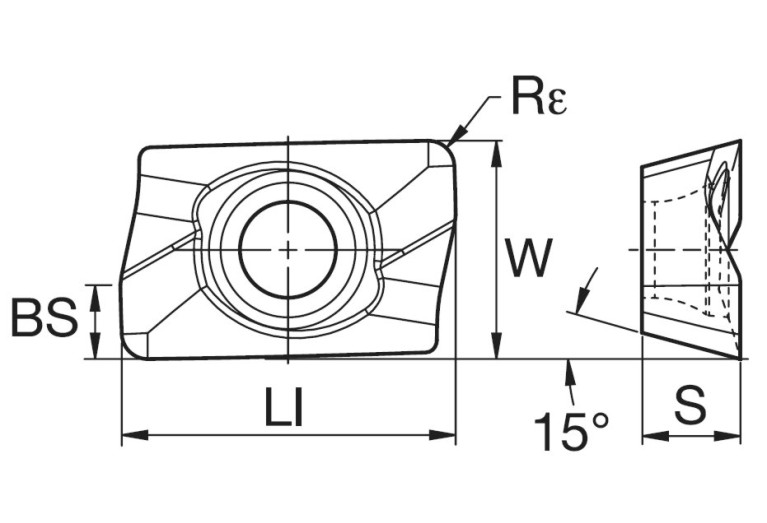

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

3.41 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

TiN

COMPC Company code

KH - Kennametal

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

8/1/2008

DIN

AD1545PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

ADCT-LD, indexable insert for NGE-B

GRDMFG Grade manufacturers designation

KC725M

GRDPRIO Standard designation of the grade main application

H W

ID Technical product number

2229418

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

15.35 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD1545PD3R

Name Identifying order number

ADCT154524PDERLD KC725M

NameAnsi Identifying order number inch alternative

ADCT23286PDER5LD KC725M

NOI Insert index count

RE Corner radius

2.4 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

ADCT154524PDERLD

STDDESAnsi Standard designation ANSI

ADCT23286PDER

TCINS Tolerance class insert

W1 Insert width

10 mm

Working process

FEC - Square shoulder milling
