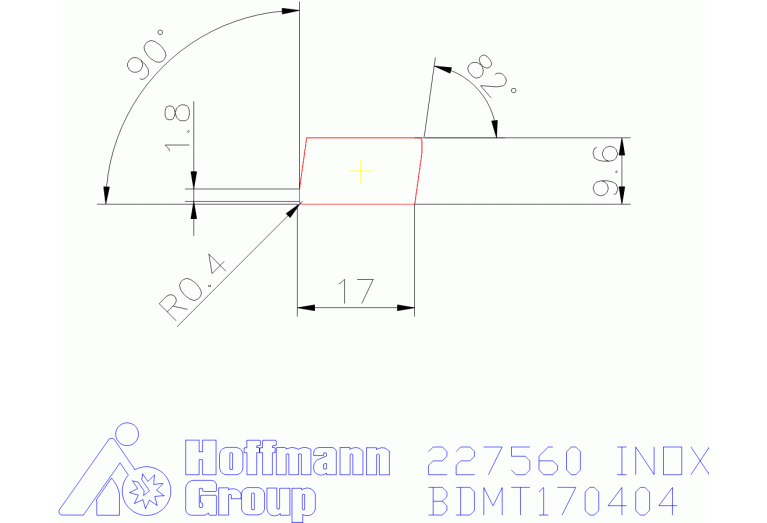

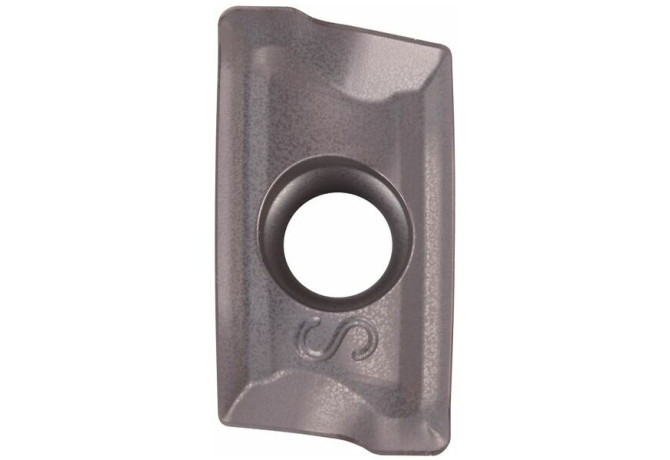

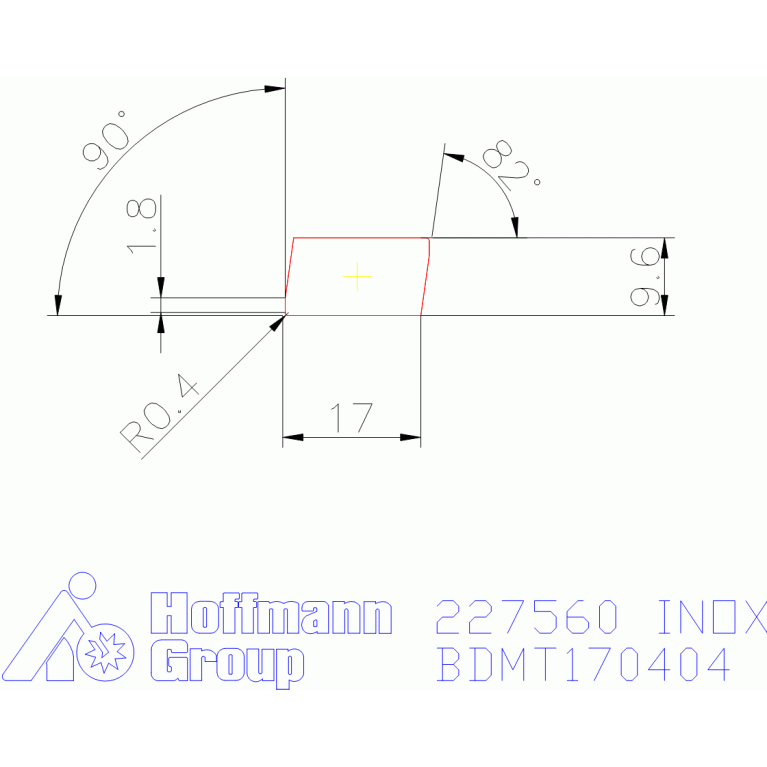

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 227560 INOX

227560 INOX

Артикул: 227560 INOX

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

18 Degree

ANN Clearance angle minor

80 Degree

BS Wiper edge length

1.8 mm

CB Chip breaker face count

1 - With chip breaker one-side

CECC Cutting edge condition code

E - Rounded

COATN Coating / Покрытие

MEGACOAT NANO

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

BD1704043R

EPSR Insert included angle

82 Degree

FamilyProducts

BDMT 170404 ER-JS

GRDMFG Grade manufacturers designation

PR1535

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

17 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

BD1704043R

Name Identifying order number

227560 INOX

NOI Insert index count

RE Corner radius

0.4 mm

S Insert thickness

4.9 mm

STDDES Standard designation

BDMT170404ER

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

9.6 mm

Working process

No working processes available

WT Weight of item

0.007 kg
