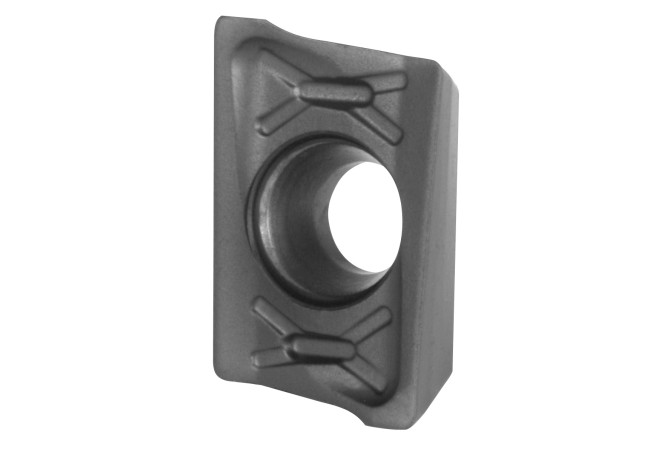

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 226345 INOX

226345 INOX

Артикул: 226345 INOX

В наличии

В корзину

Описание

Характеристики

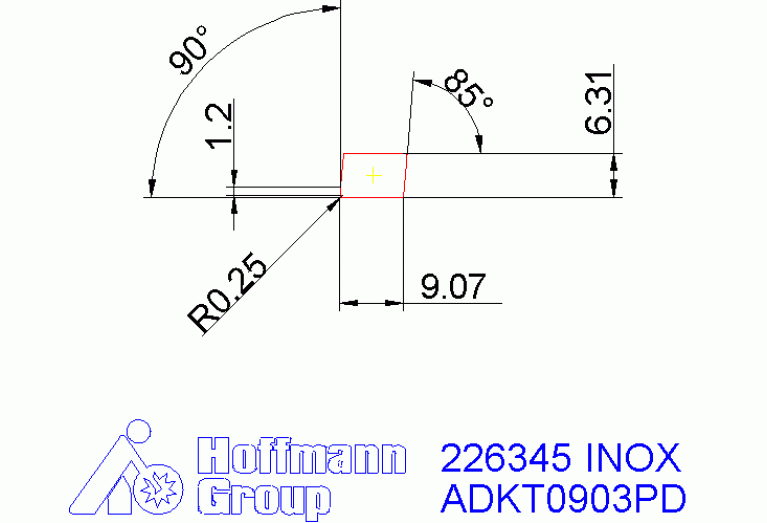

AN Clearance angle major

15 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AD0903PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

ADKT 0903 PDER-43

GRDMFG Grade manufacturers designation

SP6519

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

9.07 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AD0903PD3R

Name Identifying order number

226345 INOX

NOI Insert index count

RE Corner radius

0.25 mm

S Insert thickness

3.5 mm

STDDES Standard designation

ADKT0903PDER

TCE Tipped cutting edge code

TCINS Tolerance class insert

K - Cold formed

W1 Insert width

6.31 mm

Working process

No working processes available

WT Weight of item

0.001 kg
