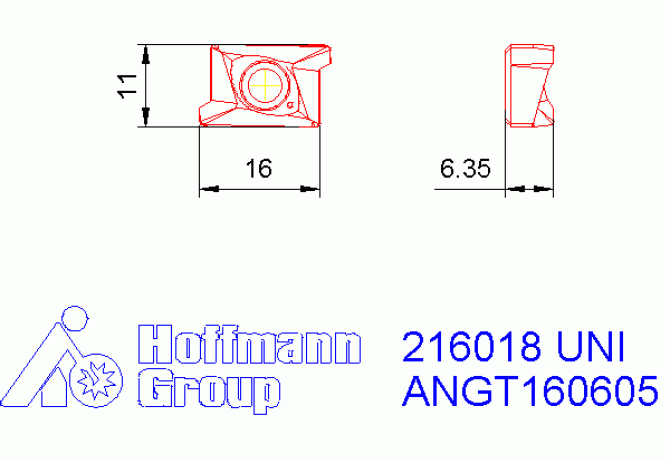

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 216018 UNI

216018 UNI

Артикул: 216018 UNI

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

BS Wiper edge length

2 mm

CB Chip breaker face count

1 - With chip breaker one-side

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AN1606053R

EPSR Insert included angle

89 Degree

FamilyProducts

ANGT 160605 PPER HB 7735 UNI GARANT

GRDMFG Grade manufacturers designation

HB7735

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

15.95 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AN1606053R

Name Identifying order number

216018 UNI

RE Corner radius

0.5 mm

S Insert thickness

6.35 mm

STDDES Standard designation

ANGT160605

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

11 mm

Working process

No working processes available

WT Weight of item

0.0087 kg
