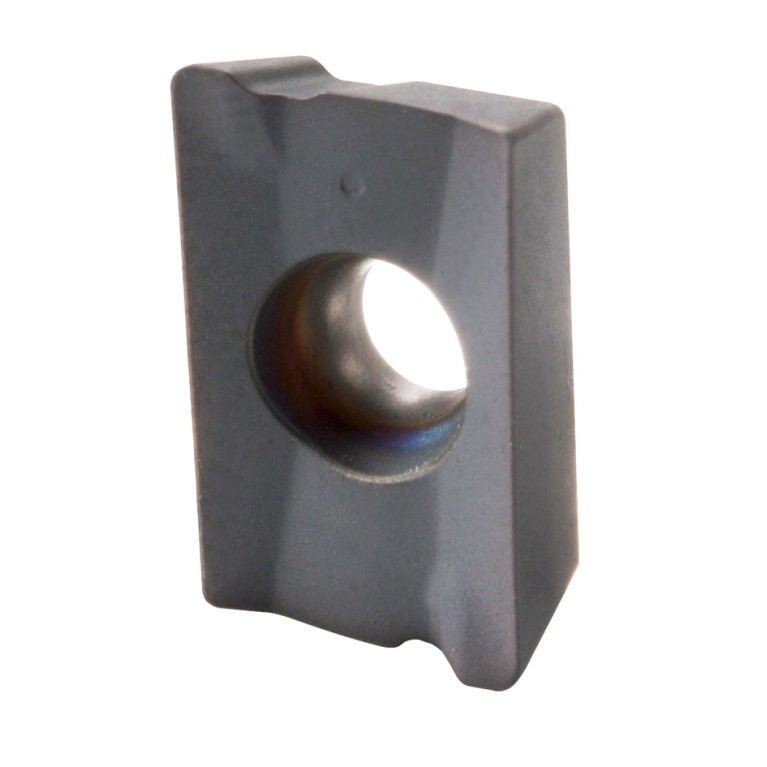

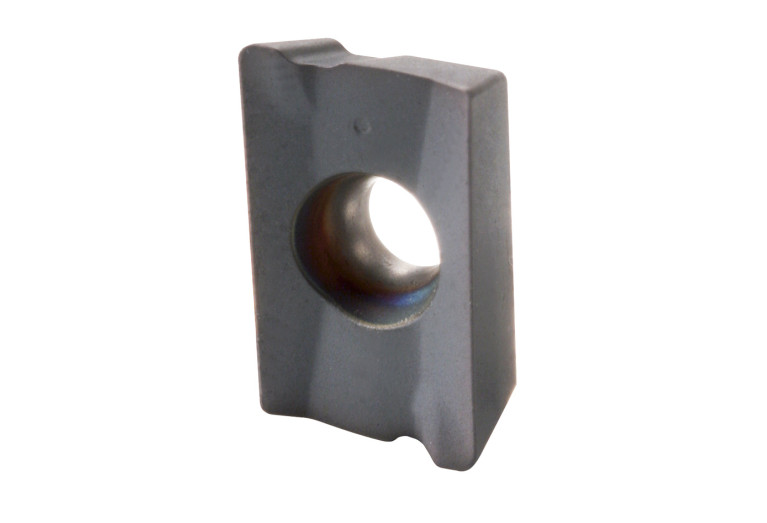

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 215881 UNI

215881 UNI

Артикул: 215881 UNI

В наличии

В корзину

Описание

Характеристики

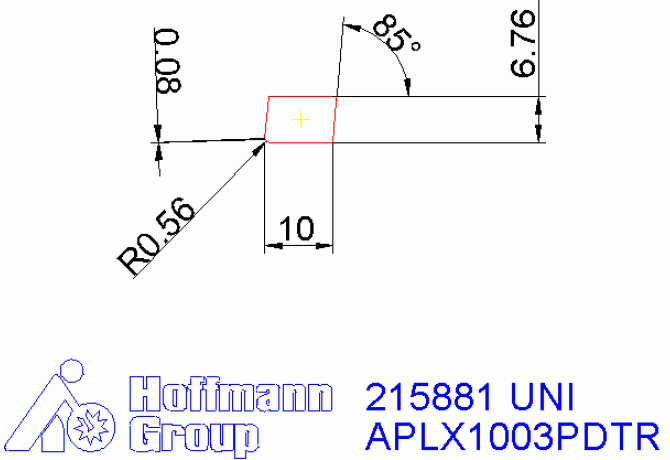

AN Clearance angle major

11 Degree

AS Clearance angle wiper edge

15 Degree

BS Wiper edge length

0.08 mm

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AP1003PD3R

EPSR Insert included angle

85 Degree

FamilyProducts

APLX 1003 PDTR

GRDMFG Grade manufacturers designation

HB720

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

KRINS Cutting edge angle major

90 Degree

L Cutting edge length

10 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1003PD3R

Name Identifying order number

215881 UNI

RE Corner radius

0.56 mm

S Insert thickness

3.5 mm

STDDES Standard designation

APLX1003PDTR

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

6.76 mm

Working process

No working processes available

WT Weight of item

0.006 kg
