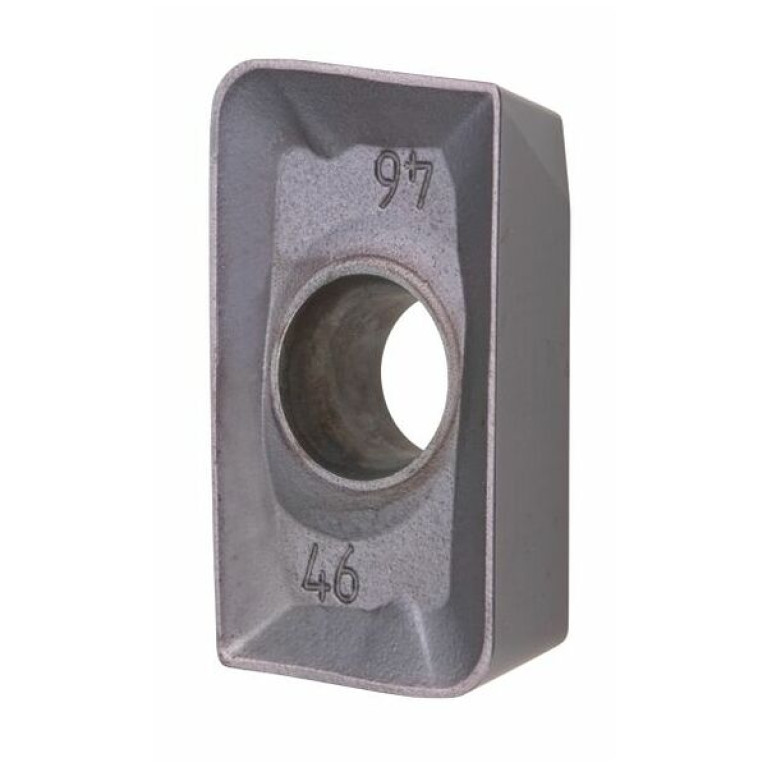

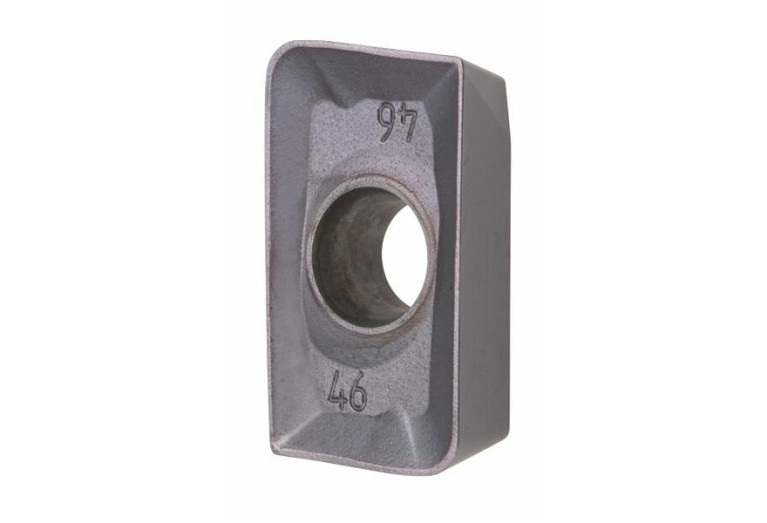

Главная Каталог продукции Toolunited 15 201-05 - Parallelogram-shaped insert 215773 UNI

215773 UNI

Артикул: 215773 UNI

В наличии

В корзину

Описание

Характеристики

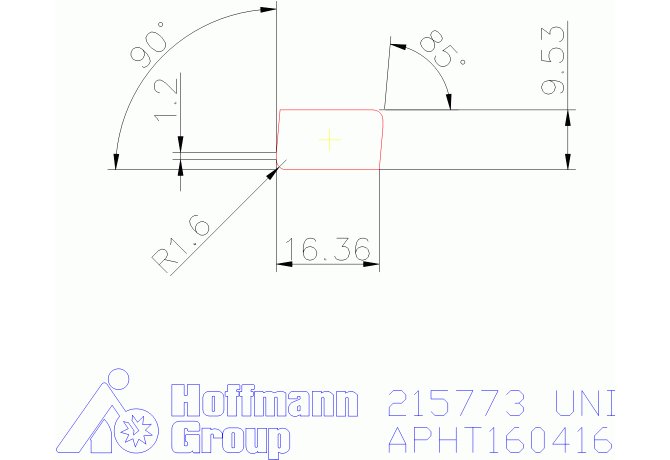

AN Clearance angle major

11 Degree

BS Wiper edge length

1.2 mm

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

HOG - Hoffmann Group

CSP Coolant supply property

0 - Without coolant supply

Delivery state valid from

1/11/2017

DIN

AP1604163R

EPSR Insert included angle

85 Degree

FamilyProducts

APHT 160416ER-46

GRDMFG Grade manufacturers designation

SP6519

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-05 - Parallelogram-shaped insert

L Cutting edge length

16.605 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

AP1604163R

Name Identifying order number

215773 UNI

NOI Insert index count

RE Corner radius

1.6 mm

S Insert thickness

4.76 mm

STDDES Standard designation

APHT160416

TCE Tipped cutting edge code

TCINS Tolerance class insert

W1 Insert width

9.53 mm

Working process

No working processes available

WT Weight of item

0.007 kg
